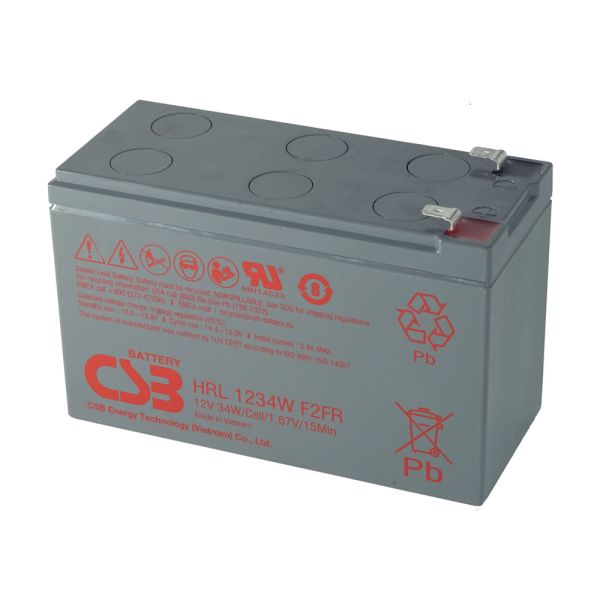

CSB HRL1234W (12V 9Ah) High-Rate & Long-Life VRLA AGM Battery

1-3 Day Delivery

1-3 Day Delivery

SKU:
HRL1234W
MPN:
HRL 1234W
£30.58 £25.48
  • Capacity Ah: 9
  • Nominal Voltage: 12
  • Dimensions (LxWxH): 150.9x64.8x98.6mm
  • Typical Weight: 2.7kg
  • Long life, low self-discharge rate & high reliability
  • Safe, low resistance for easy recharge & greater energy output
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Batteries are strictly tested by a patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport
Standard Delivery  (1 - 7 Days)

The HRL Series is a high rate discharge and long-life battery with a standby life of up to 8-10 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 34W
  • Weight: 2.7Kg
  • Length: 151mm
  • Width: 65mm
  • Height: 94mm
  • Terminal: F2 Faston terminals
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Standby Use:

  • UPS power supplies
  • Workstation UPS
  • Emergency lighting equipment
  • Precision instrument backup power
  • Fire alarms and security systems
  • Communications and electric equipment
  • Office computers, processors and other office automation equipment
  • Robots, control equipment and other factory automation equipment
  • Emergency power supplies in power generation plants and substations
  • Telecommunications
  • Various telemeter equipment

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Replaces the following batteries:

  • PXL12090
  • FIAMM FGHL20902
  • Panasonic UP-PW1245

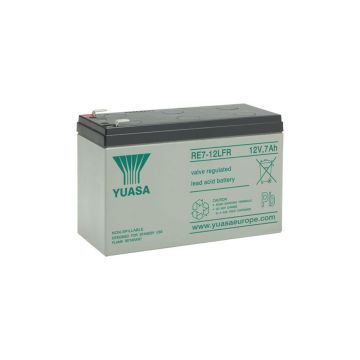

  • Yuasa RE7-12

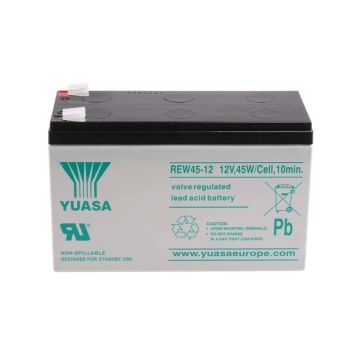

  • Yuasa REW45-12

Replaces the following batteries:

  • PXL12090
  • FIAMM FGHL20902
  • Panasonic UP-PW1245
  • Yuasa RE7-12
  • Yuasa REW45-12

Specification

Cells Per Unit6
Voltage Per Unit12 V
Capacity34W @ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F)
WeightApprox. 2.7 kg(5.95 lbs)
Maximum Discharge Current130A (5 Sec)
Internal ResistanceApprox. 17 mΩ
Operating Temperature RangeDischarge: -15~50(5°F~122°F)
Charge: -15~40(5°F~104°F)
Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range25°C±3°C(77°F±5°F)
Float Charging Voltage13.5 to 13.8 VDC/Unit Average at 25°C(77°F)
Recommended Maximum Charging Current Limit3.4A
Equalization and Cycle Service14.4 to 15.0 VDC/Unit Average at 25°C(77°F)
Self DischargeIt should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25
TerminalF2-Faston Tab 250
Container MaterialABS (UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
