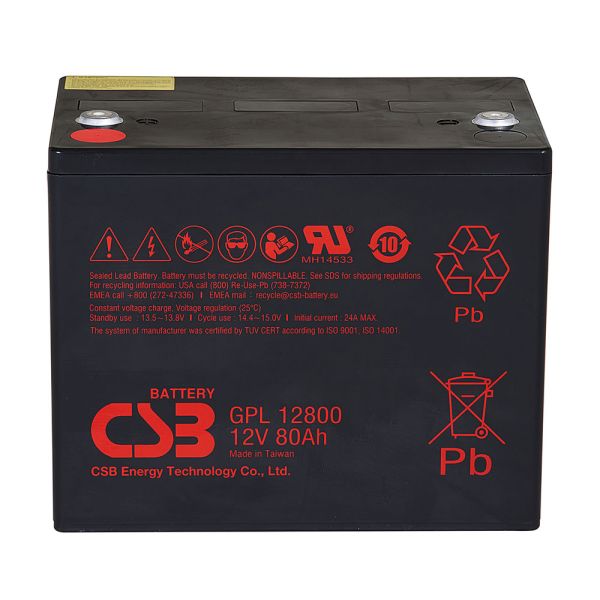

CSB GPL12800 (12V 80Ah) General Purpose & Long-Life VRLA AGM Battery

1-3 Day Delivery

1-3 Day Delivery

SKU:
GPL12800
MPN:
GPL 12800
£244.33 £203.61

The GPL Series is a general-purpose, long-life battery with a design life of up to 8–10 years in standby mode. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Please Note: 4x GPL12800 are a direct replacement for an APC RBC14

Standard Delivery  (1 - 7 Days)

The GPL Series is a general-purpose, long-life battery with a design life of up to 8-10 years in standby mode. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 80Ah
  • Weight: 26Kg
  • Length: 261mm
  • Width: 168mm
  • Height: 211mm
  • Terminal: Internal thread for M6 bolt
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Standby Use:

  • UPS power supplies
  • Workstation UPS
  • Emergency lighting equipment
  • Precision instrument backup power
  • Fire alarms and security systems
  • Communications and electric equipment
  • Office computers, processors and other office automation equipment
  • Robots, control equipment and other factory automation equipment
  • Emergency power supplies in power generation plants and substations
  • Telecommunications
  • Various telemeter equipment

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Replaces the following batteries:

  • Powersonic PS12750 PS-12750
  • Powersonic PS12600 PS12750NB
  • Yuasa YC70-12
  • CSB Battery GP12750
  • Power Battery PRC1265 PRC1265S
  • Power Battery TC1265 TC1265S
  • Power Battery PRC1280X TC1280X
  • Power Battery PRC1290S PRC1290X
  • Power Battery TC1290S TC1290X

Please Note: 4x GPL12800 are a direct replacement for an APC RBC14

Specification

Cells Per Unit6
Voltage Per Unit12 V
Capacity80Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F)
WeightApprox. 25.6kg. (56.42 lbs.)
Maximum Discharge current800 A (5 sec.)
Internal ResistanceApprox. 4.0 mΩ
Operating Temperature RangeDischarge: -15~50(5°F~122°F)
Charge: -15~40(5°F~104°F)
Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range25°C ± 3°C (77°F ± 3°F)
Float charging voltage13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit24.0A
Equalization and Cycle Service14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self DischargeIt should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25
TerminalI2-Thread lead alloy recessed terminal to accept M6 bolt
Container MaterialPolypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request.
