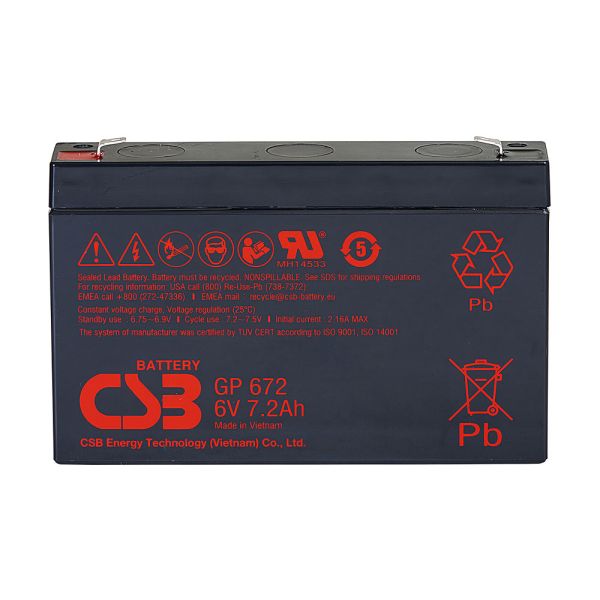

CSB GP672F1 (6V 7.2Ah) General Purpose VRLA AGM Battery

1-3 Day Delivery

1-3 Day Delivery

SKU:
GP672F1
MPN:
GP 672
£18.58 £15.48

The GP Series is a general purpose battery with a standby life of up to 5 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Standard Delivery  (1 - 7 Days)

The GP Series is a general purpose battery with a standby life of up to 5 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 6V
  • Capacity: 8.4Ah
  • Weight: 1.22Kg
  • Length: 151mm
  • Width: 34mm
  • Height: 94mm
  • Terminal: F1 Faston terminals (0.187")
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Standby Use:

  • UPS power supplies
  • Workstation UPS
  • Emergency lighting equipment
  • Precision instrument backup power
  • Fire alarms and security systems
  • Communications and electric equipment
  • Office computers, processors and other office automation equipment
  • Robots, control equipment and other factory automation equipment
  • Emergency power supplies in power generation plants and substations
  • Telecommunications
  • Various telemeter equipment

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Replaces batteries including the following:

  • BP7-6
  • CSB GP670 GP670F2 GP670F1
  • DiaMec DM6-7.2
  • DM6-7.2FR
  • DM6-7.2LCR067P
  • Eagle Picher CF-6V7
  • Enduring Battery CB 8-6FR CB8-6FR
  • Enersys / Yuasa NP7-6
  • Huanyu HYS670
  • Injusa High Power IJ6-7.2HR
  • LCR067P1
  • LCR067P2
  • LC-R067R2CH1
  • LCR067R2P
  • LC-R067R2P
  • LC-R067R2P1
  • LC-R067R2P2
  • LCR6V7.2P
  • LCR6V7.2P1
  • LCR6V7.2P2
  • NPW45-6
  • Panasonic LC-R067R2P LC-V069PU1
  • Panasonic LCR6V7.2P LCR067P LCR067R2CH1
  • Panasonic UP-RW0645P1
  • PE6V7.2
  • PE-6V7.2
  • PE6V7.2F1
  • PE-6V7.2F1
  • Powersonic PS670 PS-670F1
  • Rocket ES6-7

Specification

Cells Per Unit3
Voltage Per Unit6 V
Capacity7.2 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
WeightApprox. 1.22 kg. (2.68 lbs.)
Maximum Discharge current100A/130A (sec..)
Internal ResistanceApprox. 12.3 mΩ
Operating Temperature RangeDischarge: -15~50(5°F~122°F)
Charge: -15~40(5°F~104°F)
Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range25°C ± 3°C (77°F ± 5°F)
Float charging voltage6.75 to 6.9 VDC/unit Average at 25 (77°F )
Recommended Maximum Charging current limit2.16A
Equalization and Cycle Service7.2 to 7.5 VDC/unit Average at 25 (77°F )
Self DischargeIt should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25
TerminalF1/F2-Faston Tab187/250
Container MaterialABS (UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.

Specification Sheet
