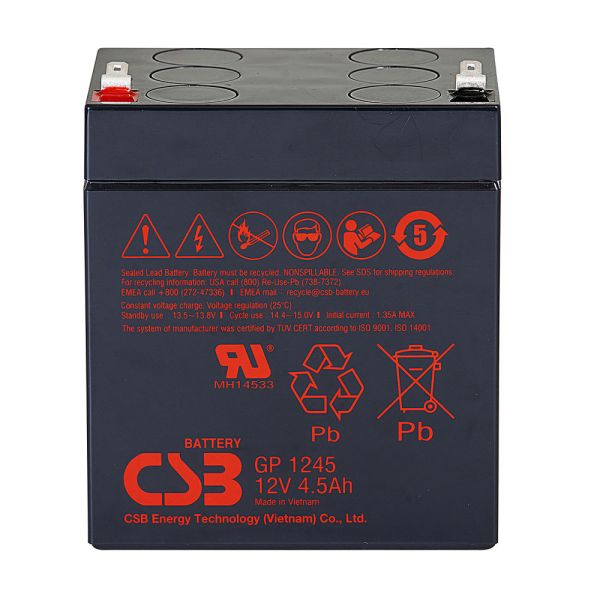

CSB GP1245F1 (12V 4.5Ah) General Purpose VRLA AGM Battery

Standard Delivery  (1 - 7 Days)
Availability: In stock
SKU:
GP1245F1
MPN:
GP 1245
£29.65 £24.71

The GP Series is a general purpose battery with a standby life of up to 5 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Standard Delivery  (1 - 7 Days)
Seen this product cheaper elsewhere? Let us know
Enter the details of the other product you found

The GP Series is a general purpose battery with a standby life of up to 5 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 4.5Ah
  • Weight: 1.66Kg
  • Length: 93mm
  • Width: 70mm
  • Height: 102mm
  • Terminal: F1 Faston terminals (0.187")
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Standby Use:

  • UPS power supplies
  • Workstation UPS
  • Emergency lighting equipment
  • Precision instrument backup power
  • Fire alarms and security systems
  • Communications and electric equipment
  • Office computers, processors and other office automation equipment
  • Robots, control equipment and other factory automation equipment
  • Emergency power supplies in power generation plants and substations
  • Telecommunications
  • Various telemeter equipment

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Replaces batteries including the following:

  • Rocket ES4-12
  • Rocket WP4-12
  • Enersys NP4-12
  • Yuasa NP4-12
  • B&B BP4-12
  • Exide EP4.5-12
  • Panasonic LC-RB124P
  • LC-RB124P
  • Panasonic LC-P125
  • Panasonic LCR12V4BP
  • Panasonic LCR12V5P
  • Hitachi HP4-12
  • Hitachi BP4-12
  • FIAMM FG20451
  • DiaMec DM12-4.2
  • Vision CP1245
  • CP1245
  • DK1245
  • GP1245F2
  • LCR12V5P
  • LC-RB124P
  • LC-P125
  • PS-1242

Specification

Cells Per Unit 6
Voltage Per Unit 12 V
Capacity 7.2 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
Weight Approx. 2.40kg. (5.29 lbs.)
Maximum Discharge current 100A/130A (5sec.)
Internal Resistance Approx. 23mΩ
Operating Temperature Range Discharge: -15~50(5°F~122°F)
Charge: -15~40(5°F~104°F)
Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range 25°C ± 3°C (77°F ± 5°F)
Float charging voltage 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit 2.16A
Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25
Terminal F1/F2-Faston Tab187/250
Container Material ABS (UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
