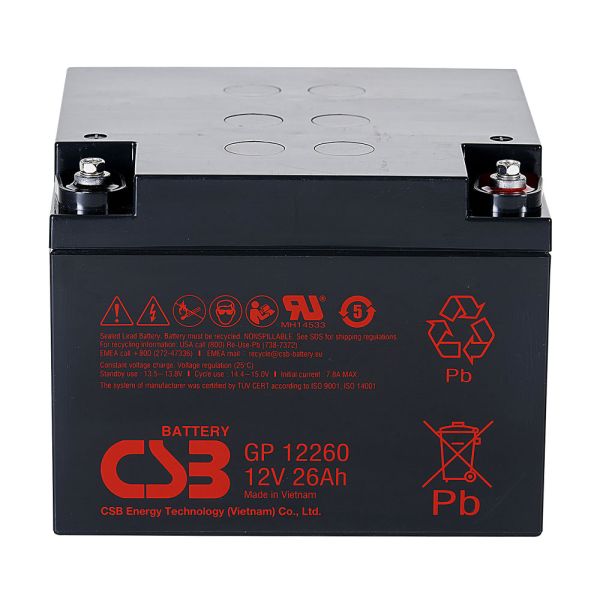

CSB GP12260I (12V 26Ah) General Purpose VRLA AGM Battery

1-3 Day Delivery

1-3 Day Delivery

SKU:
GP12260I
MPN:
GP 12260
£69.72 £58.10

The GP Series is a general purpose battery with a standby life of up to 5 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Standard Delivery  (1 - 7 Days)

The GP Series is a general purpose battery with a standby life of up to 5 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 26Ah
  • Weight: 8.45Kg
  • Length: 166mm
  • Width: 174mm
  • Height: 125mm
  • Terminal: B1/B3/B3B-L terminal or Recessed type to accept M5 bolt
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Standby Use:

  • UPS power supplies
  • Workstation UPS
  • Emergency lighting equipment
  • Precision instrument backup power
  • Fire alarms and security systems
  • Communications and electric equipment
  • Office computers, processors and other office automation equipment
  • Robots, control equipment and other factory automation equipment
  • Emergency power supplies in power generation plants and substations
  • Telecommunications
  • Various telemeter equipment

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Replaces batteries including the following:

  • Rocket ES26-12
  • Enersys / Yuasa NP24-12
  • Powersonic PS12260
  • Panasonic LCL-12V24P
  • Wing ESL26-12
  • Portalac PE12V24A
  • B&B BP26-12
  • Sonnenschein A512/25 G5
  • FIAMM FG22703
  • Yucell Y24-12I
  • DiaMec DM12-26
  • Universal Batteries UB12260
  • Full Force HGL24-12
  • Huanyu HYS12240
  • Vision CP12260
  • Vision CP12240
  • Vision CP12240S
  • Vision CP12240X
  • Vision CP12280S
  • Ultracell UC26-12 CB26-12
  • ES24-12
  • G12V26EP
  • GP12V26EP
  • GT12-26
  • HDS-12240
  • HP24-12
  • HP24-12F
  • HPS12240
  • LCL12V24P
  • LCP1224P(a)
  • LC-X1224AP
  • NP24-12IF312
  • PS12024
  • PS12240
  • PS-12240
  • SEC12-24
  • SEC12-26
  • SHC125B
  • WP24-12

Specification
Cells Per Unit 6
Voltage Per Unit 12 V
Capacity 26 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
Weight Approx. 8.45 kg. (18.62 lbs.)
Maximum Discharge current 350 A (5sec.)
Internal Resistance Approx. 9.9 mΩ
Operating Temperature Range Discharge: -15~50(5°F~122°F)
  Charge: -15~40(5°F~104°F)
  Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range 25°C ± 3°C (77°F ± 5°F)
Float charging voltage 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit 7.8 A
Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25
Terminal B1/B3/B3B-L terminal or Recessed type to accept M5 bolt
Container Material ABS (UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
