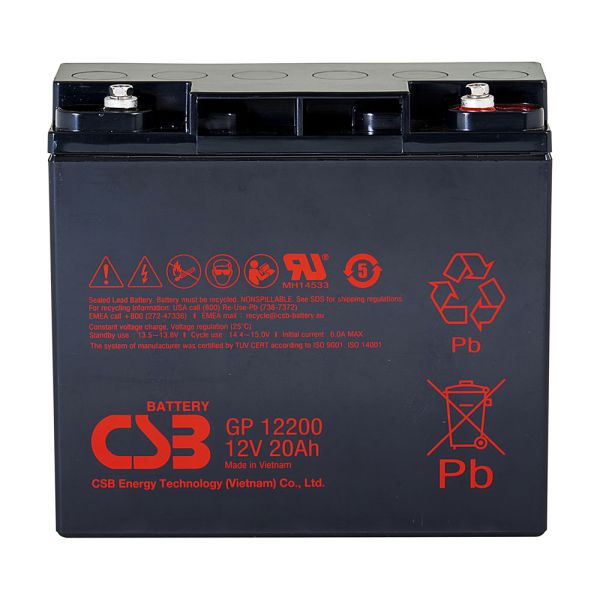

CSB GP12200 (12V 20Ah) General Purpose VRLA AGM Battery

1-3 Day Delivery

1-3 Day Delivery

SKU:
GP12200
MPN:
GP 12200
£62.26 £51.88

The GP Series is a general purpose battery with a standby life of up to 5 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Standard Delivery  (1 - 7 Days)

The GP Series is a general purpose battery with a standby life of up to 5 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 20Ah
  • Weight: 6.4Kg
  • Length: 181mm
  • Width: 76mm
  • Height: 167mm
  • Terminal: Recessed M5 bolt connector
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Standby Use:

  • UPS power supplies
  • Workstation UPS
  • Emergency lighting equipment
  • Precision instrument backup power
  • Fire alarms and security systems
  • Communications and electric equipment
  • Office computers, processors and other office automation equipment
  • Robots, control equipment and other factory automation equipment
  • Emergency power supplies in power generation plants and substations
  • Telecommunications
  • Various telemeter equipment

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Replaces batteries including the following:

  • Panasonic LC-X1220P
  • Panasonic LC-X1220AP
  • Vision CP12200
  • Wing ESL 18-12
  • LC-X12200
  • LC-X12200AP
  • Yuasa NP17-12i
  • Yuasa NP18-12
  • LC-X1200P

Specification
Cells Per Unit 6
Voltage Per Unit 12V
Capacity 20 Ah @20hr-rate to 1.75V per cell @25°C (77°F)
Weight Approx. 6.4 kg. (14.11 lbs.)
Maximum Discharge current 230A (5sec.)
Internal Resistance Approx. 13.6 mΩ
Operating Temperature Range Discharge: -15~50(5°F~122°F)
  Charge: -15~40(5°F~104°F)
  Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range 25°C ± 3°C (77°F± 5°F)
Float charging voltage 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit 6.0A
Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25
Terminal I1-Thread lead alloy recessed terminal to accept M5 bolt
Container Material ABS (UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
