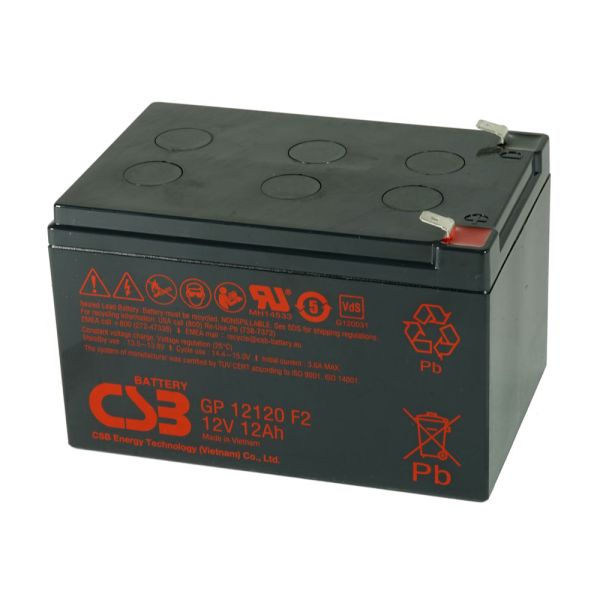

CSB GP12120F2 (12V 12Ah) General Purpose VRLA AGM Battery

1-3 Day Delivery

1-3 Day Delivery

GP 12120 F2
£39.13 £32.61

The GP Series is a general purpose battery with a standby life of up to 5 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Standard Delivery  (1 - 7 Days)

The GP Series is a general purpose battery with a standby life of up to 5 years. This series' batteries are all rechargeable, highly efficient, leak-proof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 12Ah
  • Weight: 3.67Kg
  • Length: 151mm
  • Width: 97mm
  • Height: 94mm
  • Terminal: F2 Faston terminals (0.25")
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Standby use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport


Standby Use:

  • UPS power supplies
  • Workstation UPS
  • Emergency lighting equipment
  • Precision instrument backup power
  • Fire alarms and security systems
  • Communications and electric equipment
  • Office computers, processors and other office automation equipment
  • Robots, control equipment and other factory automation equipment
  • Emergency power supplies in power generation plants and substations
  • Telecommunications
  • Various telemeter equipment

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Replaces batteries including the following:

  • 6-DZM-10
  • B&B BP12-12 BP12-12T2
  • B&D Black & Decker 572909-01 for GRC730 GFC1234 GFC1238
  • CSB Battery GH12100 GP12110
  • Diamec DM12-12
  • Enersys / Yuasa NP12-12
  • Exide EP12-12
  • Fiamm FG21201 FG21202
  • GP12110F2
  • HDS-12120
  • Hitachi HP12-12
  • Huanyu HYS12120
  • Injusa High Power IJ12-12 HR
  • LC-RA1212P1
  • MK Battery ES12-12
  • Panasonic LC-R1212BD
  • Panasonic LC-RA1212P
  • Portalac PX12090 PE12V12F2
  • PE12V12 PX12120
  • Powersonic PS-12100/PS12120
  • PS12100
  • PS-12100
  • PS-12120
  • SEC12-12
  • Sonnenschien A212/12G
  • Sunox SB12-12
  • Ultracell CB12-12 UC12-12
  • Unipower UP12120
  • Vision CP12120
  • Volcano KB12120


Cells Per Unit6
Voltage Per Unit12 V
Capacity12 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
WeightApprox. 3.67kg. (8.09 lbs.)
Maximum Discharge current150/180A (5sec.)
Internal ResistanceApprox. 16.7 mΩ
Operating Temperature RangeDischarge: -15~50(5°F~122°F)
Charge: -15~40(5°F~104°F)
Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range25°C ± 3°C (77°F ± 5°F)
Float charging voltage13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit3.6 A
Equalization and Cycle Service14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self DischargeIt should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25
TerminalF1/F2-Faston Tab187/250
Container MaterialABS (UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
