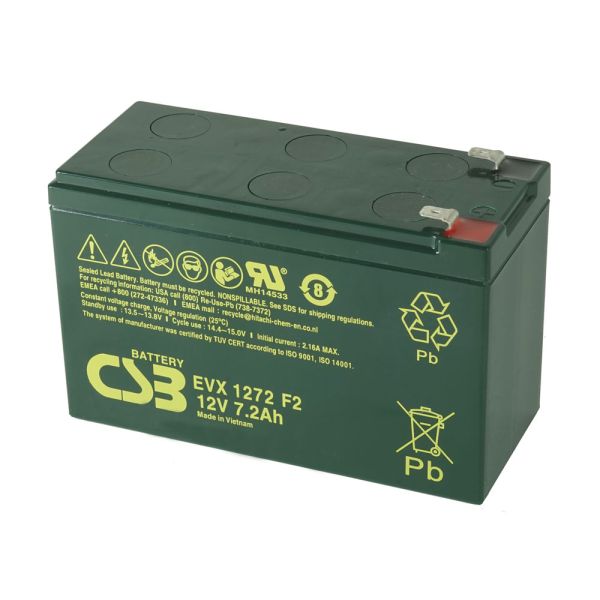

CSB EVX1272F2 (12V 7.2Ah) Electric Vehicle X VRLA AGM Battery

Standard Delivery  (1 - 7 Days)
Availability: Out of stock
SKU:
EVX1272F2
MPN:
EVX 1272 F2
£31.63 £26.36

The EVX series is specifically developed for efficient discharges in cyclical applications. At 100% discharge, the EVH series can withstand more than 400 cycles. All the batteries in this series are rechargeable, highly efficient, leakproof, and require no maintenance.

Standard Delivery  (1 - 7 Days)
Seen this product cheaper elsewhere? Let us know
Enter the details of the other product you found

The EVX series is specifically developed for efficient discharges in cyclical applications. At 100% discharge, the EVH series can withstand more than 400 cycles. All the batteries in this series are rechargeable, highly efficient, leakproof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 7.2Ah
  • Weight: 2.55Kg
  • Length: 151mm
  • Width: 65mm
  • Height: 94mm
  • Terminal: M6 nut and bolt terminal
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Cycle use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Cycle Use:

  • Electric vehicles
  • Golf carts
  • Portable telephone sets
  • Portable lighting equipment
  • Power tools, lawn mowers, vacuum cleaners
  • Portable measuring equipment
  • Portable VTR/TV, tape recorders and radios
  • Portable personal computers and processors

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Replaces the following batteries:

  • CSB EVX12170 F1
  • CSB EVX12170 F2
  • Fullriver HGL7.5-12
  • Haijiu 6-DFM-7
  • DMC 12-7
  • 6-DZM-6

Specification

Cells Per Unit6
Voltage Per Unit12 V
Capacity7.2 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
WeightApprox. 2.55kg. (5.62 lbs.)
Maximum Discharge Current100A/130A (5 sec)
Internal ResistanceApprox. 23.9 mΩ
Operating Temperature RangeDischarge: -15~50(5°F~122°F)
Charge: -15~40(5°F~104°F)
Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range25°C ± 3°C (77°F ± 5°F)
Float Charging Voltage13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit2.16A
Equalization and Cycle Service14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self DischargeIt should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25
TerminalF1/F2-Faston Tab187/250
Container MaterialABS (UL94-HB)
