The EVX series is specifically developed for efficient discharges in cyclical applications. At 100% discharge, the EVH series can withstand more than 400 cycles. All the batteries in this series are rechargeable, highly efficient, leakproof, and require no maintenance.
The EVX series is specifically developed for efficient discharges in cyclical applications. At 100% discharge, the EVH series can withstand more than 400 cycles. All the batteries in this series are rechargeable, highly efficient, leakproof, and require no maintenance.
Features & Benefits:
Cycle Use:
Solar Cell Power Generation:
Replaces the following batteries:
Specification | |
|---|---|
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 V |
| Capacity | 17 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| Weight | Approx. 5.67 kg. (12.50 lbs.) |
| Maximum Discharge Current | 230A (5 sec) |
| Internal Resistance | Approx. 13.3mΩ |
| Operating Temperature Range | Discharge: -15~50(5°F~122°F) |
| Charge: -15~40(5°F~104°F) | |
| Storage: -15~40(5°F~104°F) | |
| Nominal Operating Temperature Range | 25°C ± 3°C (77°F ± 5°F) |
| Float Charging Voltage | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| Recommended Maximum Charging current limit | 5.1A |
| Equalization and Cycle Service | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| Self Discharge | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25 |
| Terminal | B1/B3-L terminal to accept M5 nut & bolt |
| Container Material | ABS (UL94-HB) |

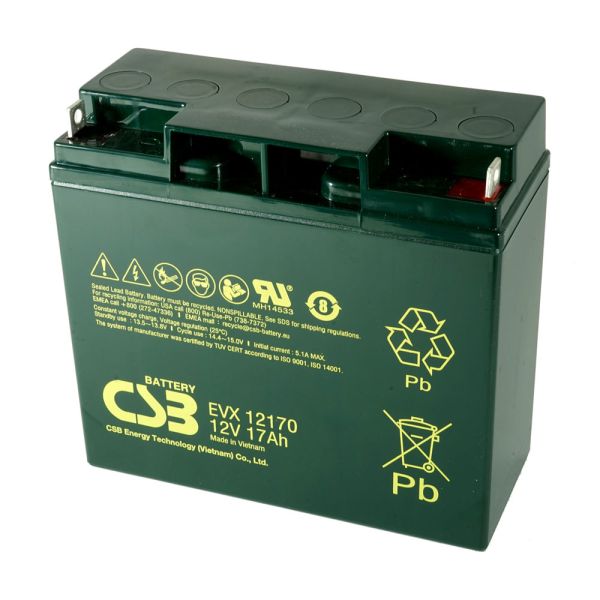

Estimated delivery cost for CSB EVX12170 (12V 17Ah) Electric Vehicle X VRLA AGM Battery is £11.95.
