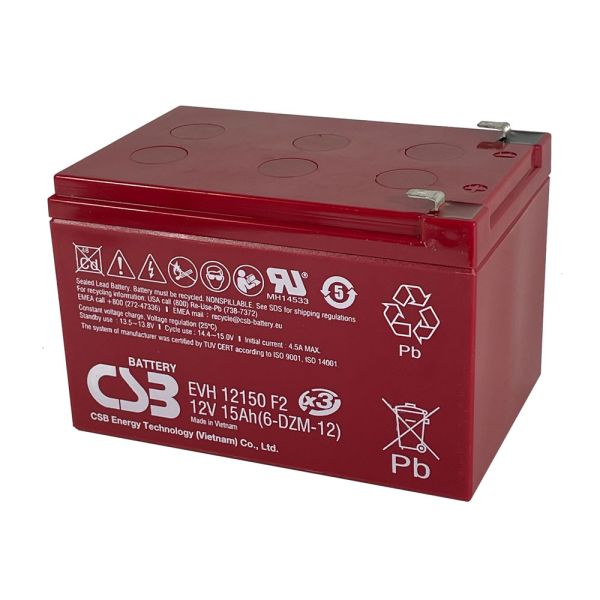

CSB EVH12150F2 (12V 15Ah) Electric Vehicle H VRLA AGM Battery

ETA confirmed after ordering or call: 0800 254 5655

ETA confirmed after ordering or call: 0800 254 5655

SKU:
EVH12150F2
MPN:
EVH 12150 F2
£55.51 £46.26
  • Capacity Ah: 15
  • Nominal Voltage: 12
  • Dimensions (LxWxH): 151x98x101.8mm
  • Typical Weight: 4.6kg
  • Long life, low self-discharge rate & high reliability
  • Safe, low resistance for easy recharge & greater energy output
  • Cycle use
  • High rate discharge construction
  • Deep discharge recoverability
  • Batteries are strictly tested by a patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport
Standard Delivery  (1 - 7 Days)

The EVH series is specifically developed for efficient discharges in cyclical applications. At 100% discharge, the EVH series can withstand more than 400 cycles. All the batteries in this series are rechargeable, highly efficient, leakproof, and require no maintenance.

Features & Benefits:

  • Battery Type: VRLA Sealed Lead Acid Battery
  • Voltage: 12V
  • Capacity: 15Ah
  • Weight: 11.5Kg
  • Length: 151mm
  • Width: 98mm
  • Height: 98mm
  • Terminal: F2 Faston terminals (0.25")
  • Low self-discharge rate and long life
  • Safe, low resistance with high energy output
  • Flame retardant ABS container with UL 94V-0 rating
  • Cycle use
  • High rate discharge construction
  • Deep discharge recoverability
  • Strictly tested by patented computer charge/discharge system
  • ISO9001, 14001, OHSMS 18001 certified
  • UL recognized components under UL 1989 (file number MH14533)
  • Complies with IATA/ICAO Special Provision A67 for air transport
  • Classified per MG Amendment 27 as a non-hazardous material for water transport
  • Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport

Applications

Cycle Use:

  • Electric vehicles
  • Golf carts
  • Portable telephone sets
  • Portable lighting equipment
  • Power tools, lawn mowers, vacuum cleaners
  • Portable measuring equipment
  • Portable VTR/TV, tape recorders and radios
  • Portable personal computers and processors

Solar Cell Power Generation:

  • Street lighting
  • Portable power supply
  • Water pumping stations
  • Rural power systems

Replaces the following batteries:

  • 6-DZM-12
  • LC-CA1215
  • KS12-1
  • BQ 15HR-12
  • SKS12SB EVX12120

Specification

Cells Per Unit 6
Voltage Per Unit 12 V
Capacity 15.0Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
Weight Approx. 4.60kg. (10.14 lbs.)
Maximum Discharge Current 180A (5 sec)
Internal Resistance Approx. 10.5 mΩ
Operating Temperature Range Discharge: -15~50(5°F~122°F)
  Charge: -15~40(5°F~104°F)
  Storage: -15~40(5°F~104°F)
Nominal Operating Temperature Range 25°C ± 3°C (77°F ± 5°F)
Float Charging Voltage NOT RECOMMENDED
Recommended Maximum Charging current limit 4.5 A
Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self Discharge Less than 10% after 90 days, can be stored up to 6 months at 25 (77℉)
Terminal F2-Faston Tab 250
Container Material: ABS (UL94-HB)
