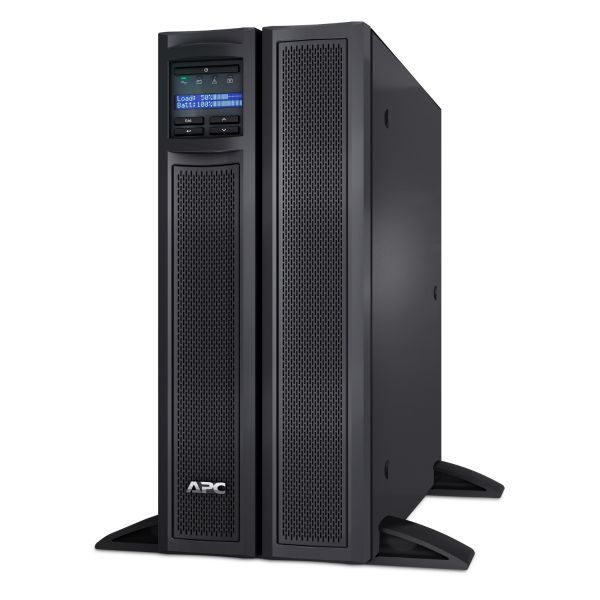

APC SMX3000HVNC Smart-UPS X 3000VA/2700W 200-240V Line Interactive UPS, RT 4U, Network Card

1 in stock for 1-2 Day Delivery

1 in stock for 1-2 Day Delivery

SKU:
SMX3000HVNC
MPN:
SMX3000HVNC
£2,660.70 £2,217.25

Perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages.

Free Express Delivery Over £99*  (1 - 2 Days)

The APC Smart-UPS X convertible extended run models are perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.

Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LCD status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a three-year repair or replace warranty (excluding battery) and two years for the battery.

Includes: CD with software, Documentation CD, Rack mounting brackets, Smart-UPS signalling RS-232 cable, USB cable, User manual

Features & Benefits:

  • Output power capacity: 2700 Watts / 3000VA
  • 6m 15s run time for 2700 watts load
  • 4U rack height
  • Network card for remote management
  • Auto-recognition of external batteries
  • Energy meter providing power usage for energy conscious users
  • High-efficiency Green Mode
  • Boost and trim automatic voltage regulation
  • Three-year repair or replace warranty
  • Output Connections - (8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup), (2) IEC 320 C19 (Battery Backup)
  • Input Connections - BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
  • Cord Length - 2.4m
  • Rack/Tower

Output

Max Configurable Power (Watts)2700Watts / 3000VA
Output Voltage DistortionLess than 5 %
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages208 V, 220 V, 240 V
TopologyLine interactive
Waveform typeSine wave
Transfer Time2-4 ms
Transfer Time6 ms typical : 10 ms maximum

Input

Input frequency50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations140 - 280V
Number of Power Cords1
Other Input Voltages220 V, 240 V
Transfer Time2-4 ms

Batteries & Runtime

Battery typeLead-acid battery
Typical recharge time3hour(s)
Replacement BatteryAPCRBC143
Expected Battery Life (years)3 - 5
RBC Quantity1
Battery Charge Power (Watts)245 Watts
Extendable Run Time1
RuntimeView Runtime Graph
EfficiencyView Efficiency Graph

Communications & Management

Interface Port(s)RJ-45 Serial, SmartSlot
Control panelLED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)Yes

Surge Protection and Filtering

Surge energy rating645Joules
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height432mm, 43.2cm
Maximum Width178mm, 17.8cm
Maximum Depth483mm, 48.3cm
Net Weight38.64kg
Shipping weight47.73kg
Shipping Height330mm, 33.0cm
Shipping Width586mm, 58.6cm
Shipping Depth633mm, 63.3cm
ColourBlack

Environmental

Operating Temperature0 - 40 °C
Operating Relative Humidity0 - 95 %
Operating Elevation0 - 3048meters
Storage Temperature-15 - 45 °C
Storage Relative Humidity0 - 95 %
Storage Elevation0 - 15240meters
Audible noise at 1 meter from surface of unit55.0dBA
Online thermal dissipation184.0BTU/hr

Conformance

ApprovalsC-Tick, CE, CSA, EAC, EN 50091-1, EN 50091-2, EN 55022 class A, EN 60950, FCC part 15 class A, GOST, IRAM, UL 1778, VDE
Standard warranty3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available

Sustainable Offer Status

RoHSCompliant

Installation Guide Smart-UPS X 2/2.2/3kVA 120-240V Tower/Rack-Mount 4U
Installation Guide Smart-UPS X 2000/2200/3000 VA 120/208/230/240 Vac Tower/Rack-Mount 4U

Operation Smart-UPS SMX 2000/2200/3000VA XL 120/208/230/240Vac TWR/RM4U

Smart-UPS Brochure LCD 230V (SMT/SMX)
Provides an overview of the Smart-UPS Offer 750-3000VA
