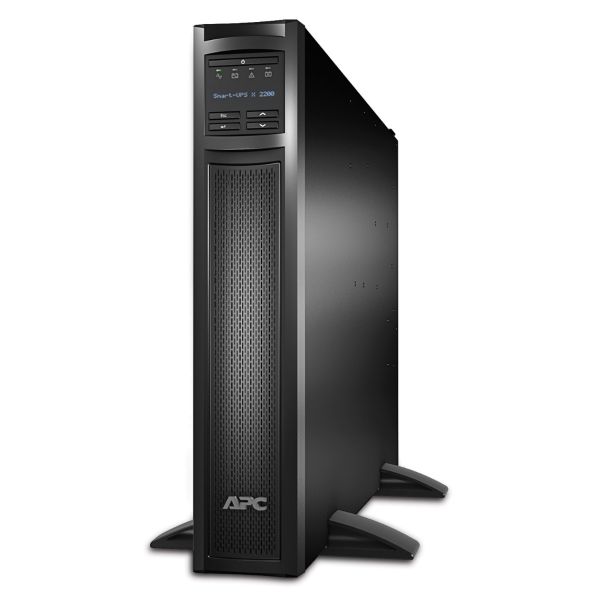

APC SMX2200RMHV2U Smart-UPS X 2200VA/1980W 200-240V Line Interactive UPS, RT 2U

3 in stock for 1-2 Day Delivery

3 in stock for 1-2 Day Delivery

SKU:
SMX2200RMHV2U
MPN:
SMX2200RMHV2U
£2,216.72 £1,847.27

Perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages.

Free Express Delivery Over £99*  (1 - 2 Days)

APC's award-winning Smart-UPS is the most popular UPS in the world for servers, storage and network power protection. Smart-UPS provides availability and manageability to your network allowing you to focus on business growth instead of business downtime. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. Smart-UPS' patented green mode provides extremely high efficiency at low, medium and high load levels making them ideal for multi-core or virtualized servers that have varying load consumption all while saving utility costs. Managed outlet groups allow segmented load control to power on or off your equipment in series as well as load shedding to preserve battery power for critical connected equipment or reboot a hung device without impacting other equipment. Available in a variety of form factors (tower, rack mount, rack/tower convertible)there is a model for every application and budget.

The APC Smart-UPS X convertible extended run models are perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.

Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LCD status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a three-year repair or replace warranty (excluding battery) and two years for the battery.

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Removable support feet, Smart-UPS signalling RS-232 cable, USB cable

Features & Benefits:

  • Output power capacity: 1980 Watts / 2200VA
  • 9m 45s run time for 1980 watts load
  • 2U rack height
  • Auto-recognition of external batteries
  • Energy meter providing power usage for energy-conscious users
  • High-efficiency Green Mode
  • Boost and trim automatic voltage regulation
  • Three-year repair or replace warranty
  • Output Connections - (8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup), (2) IEC 320 C19 (Battery Backup)
  • Input Connections - BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
  • Cord Length - 1.8m
  • Rack/Tower

Output

Max Configurable Power (Watts)1980Watts / 2200VA
Output Voltage DistortionLess than 5 %
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages220 V, 240 V
TopologyLine interactive
Waveform typeSine wave
Transfer Time2-4 ms
Transfer Time6 ms typical : 10 ms maximum

Input

Input frequency50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations140 - 280V
Number of Power Cords1
Other Input Voltages220 V, 240 V
Transfer Time2-4 ms

Batteries & Runtime

Battery typeLead-acid battery
Typical recharge time3hour(s)
Replacement BatteryAPCRBC117
Expected Battery Life (years)3 - 5
RBC Quantity1
Battery Charge Power (Watts)233 Watts
Extendable Run Time1
RuntimeView Runtime Graph
EfficiencyView Efficiency Graph

Communications & Management

Interface Port(s)RJ-45 Serial, SmartSlot, USB
Control panelLED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators, Multifunction LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)Yes
Available SmartSlot™ Interface Quantity1

Surge Protection and Filtering

Surge energy rating645Joules
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height85mm, 8.5cm
Maximum Width432mm, 43.2cm
Maximum Depth667mm, 66.7cm
Net Weight37.32kg
Shipping weight45.36kg
Shipping Height243mm, 24.3cm
Shipping Width596mm, 59.6cm
Shipping Depth869mm, 86.9cm
ColourBlack

Environmental

Operating Temperature0 - 40 °C
Operating Relative Humidity0 - 95 %
Operating Elevation0 - 3048meters
Storage Temperature-15 - 45 °C
Storage Relative Humidity0 - 95 %
Storage Elevation0 - 15240meters
Audible noise at 1 meter from surface of unit55.0dBA
Online thermal dissipation150.0BTU/hr

Conformance

ApprovalsCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60950, IRAM, Rcm, UL 1778, VDE
Standard warranty3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

RoHSCompliant

Installation Guide Smart-UPS X 2/2.2/3kVA 120-240V Tower/Rack-Mount 4U
Installation Guide Smart-UPS X 2000/2200/3000 VA 120/208/230/240 Vac Tower/Rack-Mount 4U

Operation Smart-UPS SMX 2000/2200/3000VA XL 120/208/230/240Vac TWR/RM4U

Smart-UPS Brochure LCD 230V (SMT/SMX)
Provides an overview of the Smart-UPS Offer 750-3000VA
