Call us for availability and ETA on: 0800 254 5655
Perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages.

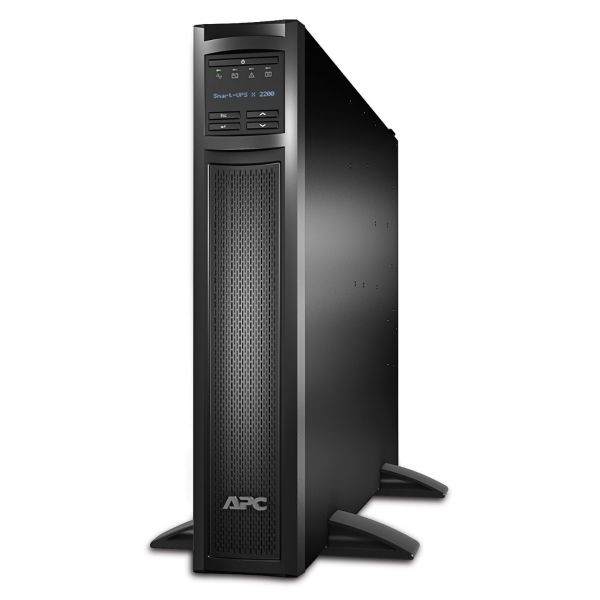

The APC Smart-UPS X convertible extended run models are perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.
Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LCD status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a three-year repair or replace warranty (excluding battery) and two years for the battery.
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Removable support feet, Smart-UPS signalling RS-232 cable, USB cable
Features & Benefits:
Output | |
|---|---|
| Max Configurable Power (Watts) | 1980Watts / 2200VA |
| Output Voltage Distortion | Less than 5 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 220 V, 240 V |
| Topology | Line interactive |
| Waveform type | Sine wave |
| Transfer Time | 6 ms typical : 10 ms maximum |
Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 140 - 280V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220 V, 240 V |
Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 3hour(s) |
| Replacement Battery | APCRBC117 |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 233 Watts |
| Extendable Run Time | 1 |
| Runtime | View Runtime Graph |
Communications & Management | |
| Interface Port(s) | RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB |
| Control panel | LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators, Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Yes |
Surge Protection and Filtering | |
| Surge energy rating | 645Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical | |
| Maximum Height | 85mm, 8.5cm |
| Maximum Width | 432mm, 43.2cm |
| Maximum Depth | 667mm, 66.7cm |
| Net Weight | 37.24kg |
| Shipping weight | 45.26kg |
| Shipping Height | 243mm, 24.3cm |
| Shipping Width | 596mm, 59.6cm |
| Shipping Depth | 869mm, 86.9cm |
| Colour | Black |
Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 15240meters |
| Audible noise at 1 meter from surface of unit | 55.0dBA |
| Online thermal dissipation | 150.0BTU/hr |
Conformance | |
| Approvals | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60950, IRAM, Rcm, UL 1778, VDE |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
Sustainable Offer Status | |
| RoHS | Compliant |
Installation Guide Smart-UPS X 2/2.2/3kVA 120-240V Tower/Rack-Mount 4U
Installation Guide Smart-UPS X 2000/2200/3000 VA 120/208/230/240 Vac Tower/Rack-Mount 4U
Operation Smart-UPS SMX 2000/2200/3000VA XL 120/208/230/240Vac TWR/RM4U
Smart-UPS Brochure LCD 230V (SMT/SMX)
Provides an overview of the Smart-UPS Offer 750-3000VA
