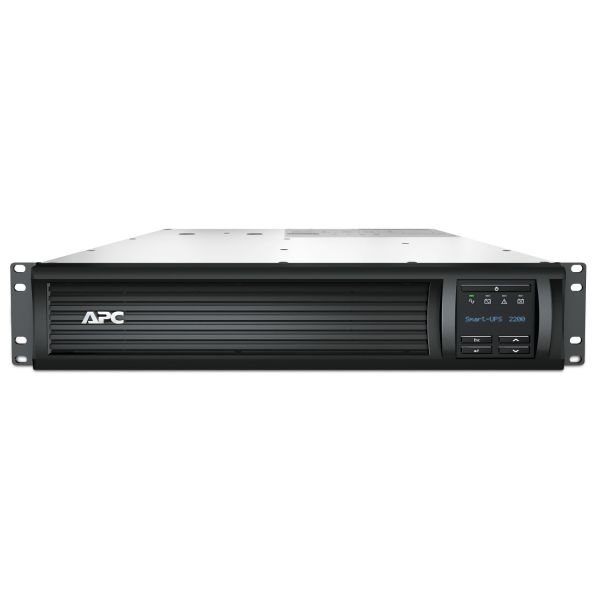

APC Smart-UPS 2200VA 230V Line Interactive UPS, Rackmount 2U, SmartConnect Port, SmartSlot

Free Express Delivery Over £99*  (1 - 2 Days)
Availability: Out of stock
SKU:
SMT2200RMI2UC
MPN:
SMT2200RMI2UC
£1,877.30 £1,564.42

Perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages.

Free Express Delivery Over £99*  (1 - 2 Days)
Seen this product cheaper elsewhere? Let us know
Enter the details of the other product you found

The APC Smart-UPS by Schneider Electric is perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.

Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LCD status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a three-year repair or replace warranty (excluding battery) and 2 years for the battery.

Includes: Documentation CD, Rack mounting hardware, Rack Mounting support rails, USB cable

Features & Benefits:

  • Output power capacity: 1980 Watts / 2200VA
  • 5m 27s run time for 1980 watts load
  • 2U rack height
  • High-efficiency Green Mode
  • SmartConnect port for remote monitoring
  • Boost and trim automatic voltage regulation
  • Three-year repair or replace warranty
  • Output Connections -(1) IEC 320 C19 (Battery Backup), (8) IEC 320 C13 (Battery Backup), (3) IEC Jumpers (Battery Backup)
  • Input Connections - BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
  • Cord length - 2m
  • Rackmount

Output

Max Configurable Power (Watts)1980Watts / 2200VA
Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage
Output Voltage DistortionLess than 5 %
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages220 V, 240 V
TopologyLine interactive
Waveform typeSine wave
Transfer Time6 ms typical : 10 ms maximum

Input

Input frequency50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations151 - 302 Adjustable, 160 - 286V
Number of Power Cords1
Other Input Voltages220 V, 240 V

Batteries & Runtime

Battery typeLead-acid battery
Typical recharge time3hour(s)
Replacement BatteryRBC43
Expected Battery Life (years)3 - 5
RBC Quantity1
Battery Charge Power (Watts)169 Watts
RuntimeView Runtime Graph
EfficiencyView Efficiency Graph

Communications & Management

Interface Port(s)RJ-45 Serial, SmartSlot, USB
Control panelMultifunction LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity1

Surge Protection and Filtering

Surge energy rating375Joules

Physical

Maximum Height86mm, 8.6cm
Maximum Width432mm, 43.2cm
Maximum Depth683mm, 68.3cm
Net Weight42.31kg
Shipping weight49.73kg
Shipping Height254mm, 25.4cm
Shipping Width600mm, 60.0cm
Shipping Depth980mm, 98.0cm
ColourBlack

Environmental

Operating Temperature0 - 40 °C
Operating Relative Humidity0 - 95 %
Operating Elevation0 - 3048meters
Storage Temperature-15 - 45 °C
Storage Relative Humidity0 - 95 %
Storage Elevation0 - 15240meters
Audible noise at 1 meter from surface of unit55.0dBA
Online thermal dissipation215.0BTU/hr

Conformance

ApprovalsCE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, Rcm, VDE
Standard warranty3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHSCompliant

Smart-UPS SMT 750/1000/1500/2200/3000 VA 230 Vac RM2U
Installation Guide for Smart-UPS SMT750RMI2UC, SMT1000RMI2UC, SMT1500RMI2UC, SMT2200RMI2UC and SMT3000RMI2UC Rack-Mount 2U

Operation Smart-UPS SMT 750C/1000C/1500C/2200C/3000C VA 120/230 Vac Tower/RM2U

Connected Smart-UPS Brochure Europe
Product overview brochure for Connected Smart-UPS
