Perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages.

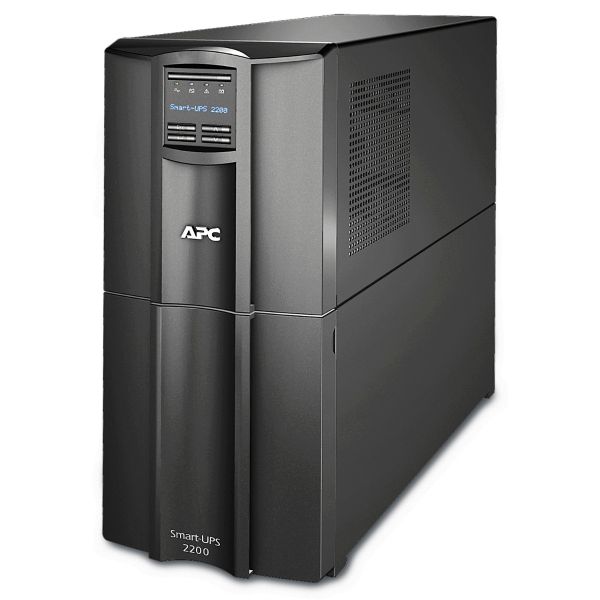

The APC Smart-UPS by Schneider Electric is perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.
Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LCD status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a three-year repair or replace warranty (excluding battery) and 2 years for the battery.
Includes: USB cable
Features & Benefits:
Output | |
|---|---|
| Max Configurable Power (Watts) | 1980Watts / 2200VA |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 5 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 220 V, 240 V |
| Topology | Line interactive |
| Waveform type | Sine wave |
| Transfer Time | 6 ms typical : 10 ms maximum |
Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 151 - 302 Adjustable, 160 - 286V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220 V, 240 V |
Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 3hour(s) |
| Replacement Battery | RBC55 |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 260 Watts |
| Runtime | View Runtime Graph |
| Efficiency | View Efficiency Graph |
Communications & Management | |
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Yes |
| Available SmartSlot™ Interface Quantity | 1 |
Surge Protection and Filtering | |
| Surge energy rating | 365Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical | |
| Maximum Height | 435mm, 43.5cm |
| Maximum Width | 197mm, 19.7cm |
| Maximum Depth | 544mm, 54.4cm |
| Net Weight | 50.2kg |
| Shipping weight | 61.9kg |
| Shipping Height | 699mm, 69.9cm |
| Shipping Width | 381mm, 38.1cm |
| Shipping Depth | 762mm, 76.2cm |
| Colour | Black |
Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 15240meters |
| Audible noise at 1 meter from surface of unit | 45.0dBA |
| Online thermal dissipation | 275.0BTU/hr |
Conformance | |
| Approvals | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, Rcm, VDE |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
Sustainable Offer Status | |
| RoHS | Compliant |
Smart-UPS SMT 750/1000/1500/2200/3000 VA 230 Vac Tower
Installation Guide for Smart-UPS SMT750IC, SMT1000IC, SMT1500IC, SMT2200IC and SMT3000IC - Tower
Operation Smart-UPS SMT 750C/1000C/1500C/2200C/3000C VA 120/230 Vac Tower/RM2U
Connected Smart-UPS Brochure Europe
Product overview brochure for Connected Smart-UPS
