Perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages.

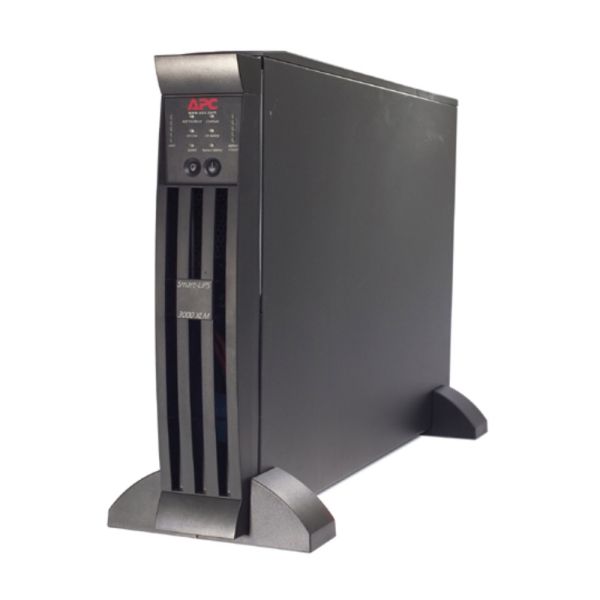

The APC Smart-UPS by Schneider Electric is perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.
Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LED status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a two-year repair or replace warranty.
Includes: CD with software, Installation guide, Rack Mounting brackets, Rack mounting support rails, Smart-UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP management card
Features & Benefits:
Output | |
|---|---|
| Max Configurable Power (Watts) | 2850 Watts / 3000VA |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Efficiency at Full Load | 95.0 % |
| Output Voltage Distortion | Less than 5 % at full load |
| Output Frequency (sync to mains) | 47 - 53 Hz For 50 Hz nominal Sync to mains, 57 - 63 Hz For 60 Hz nominal Sync to mains |
| Topology | Line interactive |
| Waveform type | Sine wave |
| Maximum Output Current | 15 |
| Bypass | Internal bypass (automatic and manual) |
Input | |
| Input frequency | 50/60 Hz +/- 5 Hz Auto-sensing |
| Input voltage range for main operations | 151 - 302 Adjustable, 160 - 286V |
| Number of Power Cords | 1 |
| Efficiency at Full Load | 95.0 % |
Batteries & Runtime | |
| Battery type | VRLA |
| Included Battery Modules | 1 |
| Typical recharge time | 3hour(s) |
| Replacement Battery | RBC43 |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 199 Watts |
| Extendable Run Time | 1 |
| Runtime | View Runtime Graph |
Communications & Management | |
| Interface Port(s) | DB-9 RS-232, RJ-45 10/100 Base-T, USB |
| Control panel | LED status display with load and battery bar-graphs and on line : on battery : replace battery : overload and bypass indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Optional |
Surge Protection and Filtering | |
| Surge energy rating | 490Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical | |
| Maximum Height | 86mm, 8.6cm |
| Maximum Width | 432mm, 43.2cm |
| Maximum Depth | 678mm, 67.8cm |
| Net Weight | 46.82kg |
| Shipping weight | 56.82kg |
| Shipping Height | 250mm, 25.0cm |
| Shipping Width | 596mm, 59.6cm |
| Shipping Depth | 980mm, 98.0cm |
| Colour | Black |
Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -20 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 9144meters |
| Audible noise at 1 meter from surface of unit | 55.0dBA |
| Online thermal dissipation | 300.0BTU/hr |
Conformance | |
| Approvals | C-Tick, CE, EN 50091-2, EN 55022 class A, EN 61000-3-2, GOST |
| Standard warranty | 2 years repair or replace |
Sustainable Offer Status | |
| RoHS | Compliant |
Smart-UPS SUM XL 1500/3000 VA 120/230 Vac RM2U
User manual Smart-UPS SUM XL 1500/3000 VA 120/230 Vac Rack-Mount 2U
Smart-UPS Warranty Registration Card - International
Warranty Registration Card
