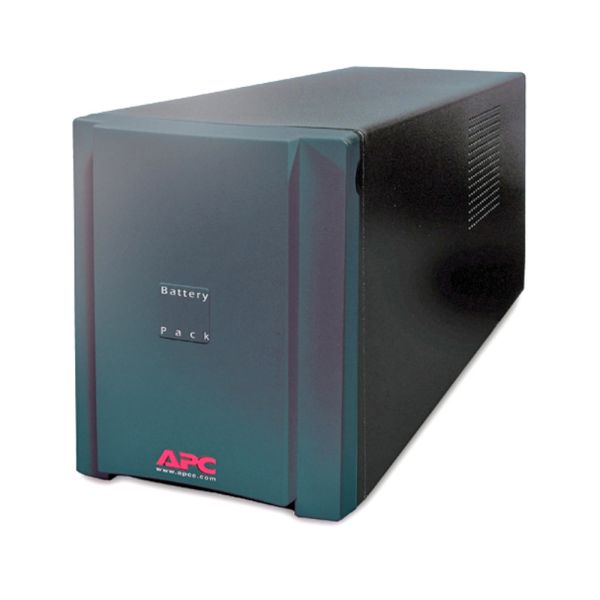

This extended battery module (EBM) by APC is intended to provide additional backup capacity during extended power outages. It is structured in a compact tower format to work with APC Smart-UPS XL UPS devices. To get the desired backup, multiple modules can be connected in parallel.
Includes: User manual
Features & Benefits:
| Output | |
|---|---|
| Output Voltage Distortion | Less than 5 % at full load |
| Output Frequency (sync to mains) | 47 - 53 Hz For 50 Hz nominal Sync to mains, 57 - 63 Hz For 60 Hz nominal Sync to mains |
| Load Crest Factor | Up to 5 : 1 |
| Waveform type | Sine wave |
| Input | |
| Number of Power Cords | 1 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Replacement Battery | RBC11 |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 81.6kWatts |
| Runtime | View Runtime Graph |
| Physical | |
| Maximum Height | 216mm, 21.6cm |
| Maximum Width | 170mm, 17.0cm |
| Maximum Depth | 439mm, 43.9cm |
| Net Weight | 31.36kg |
| Shipping weight | 33.18kg |
| Shipping Height | 387mm, 38.7cm |
| Shipping Width | 320mm, 32.0cm |
| Shipping Depth | 591mm, 59.1cm |
| Colour | Black |
| Units per Pallet | 12.0 |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 15240meters |
| Conformance | |
| Standard warranty | 2 years repair or replace |
| Sustainable Offer Status | |
| RoHS | Compliant |
Estimated delivery cost for APC Smart-UPS XL External Battery Pack for 24V is £0.
