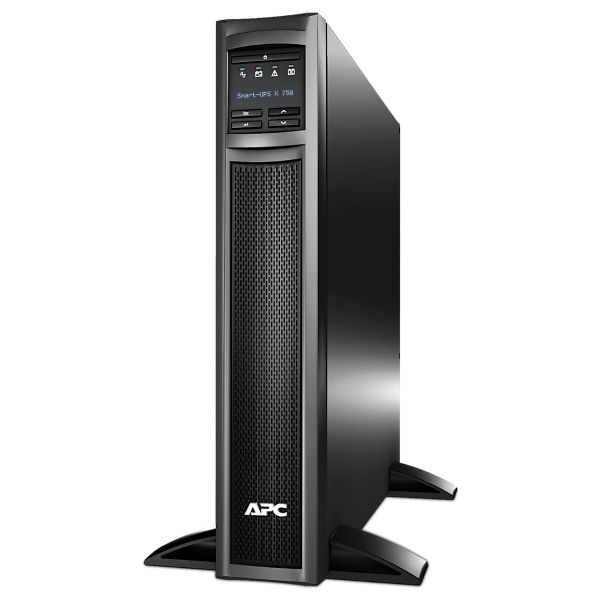

APC SMX750INC Smart-UPS X 750VA/600W 230V Line Interactive UPS, RT 2U, Network Card

Call us for availability and ETA on: 0800 254 5655

Call us for availability and ETA on: 0800 254 5655

SKU:
SMX750INC
MPN:
SMX750INC
£1,136.24 £946.87

Perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages.

Free Express Delivery Over £99*  (1 - 2 Days)

The APC Smart-UPS X convertible extended run models are perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.

Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LCD status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a three-year repair or replace warranty (excluding battery) and two years for the battery.

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, SmartUPS signalling RS-232 cable, Temperature probe, USB cable

Features & Benefits:

  • Output power capacity: 600 Watts / 750VA
  • 14m 14s run time for 600 watts load
  • 2U rack height
  • Network card for remote management
  • Auto-recognition of external batteries
  • Energy meter providing power usage for energy conscious users
  • High-efficiency Green Mode
  • Boost and trim automatic voltage regulation
  • Three-year repair or replace warranty
  • Output Connections - (2) IEC Jumpers (Battery Backup), (8) IEC 320 C13 (Battery Backup)
  • Input Connections - IEC 320 C14
  • Cord Length - 1.8m
  • Rack/Tower

Output

Max Configurable Power (Watts)600 Watts / 750VA
Output Voltage DistortionLess than 5 %
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages220 V, 240 V
TopologyLine interactive
Waveform typeSine wave

Input

Input frequency50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations151 - 302 Adjustable, 160 - 286V
Other Input Voltages220 V, 240 V

Batteries & Runtime

Battery typeLead-acid battery
Included Battery Modules1
Typical recharge time3hour(s)
Replacement BatteryAPCRBC116
Expected Battery Life (years)3 - 5
RBC Quantity1
Battery Charge Power (Watts)104 Watts
DC Overcurrent Protection60A
Extendable Run Time1
RuntimeView Runtime Graph

Communications & Management

Interface Port(s)RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB
Control panelLED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)Yes

Surge Protection and Filtering

Surge energy rating645Joules

Physical

Maximum Height89mm, 8.9cm
Maximum Width432mm, 43.2cm
Maximum Depth490mm, 49.0cm
Net Weight22.0kg
Shipping weight26.44kg
Shipping Height246mm, 24.6cm
Shipping Width589mm, 58.9cm
Shipping Depth620mm, 62.0cm
ColourBlack

Environmental

Operating Temperature0 - 40 °C
Operating Relative Humidity0 - 95 %
Operating Elevation0 - 3048meters
Storage Temperature-15 - 45 °C
Storage Relative Humidity0 - 95 %
Storage Elevation0 - 15240meters
Audible noise at 1 meter from surface of unit40.0dBA
Online thermal dissipation69.0BTU/hr

Conformance

ApprovalsCE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, Rcm, VDE
Standard warranty3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHSCompliant
