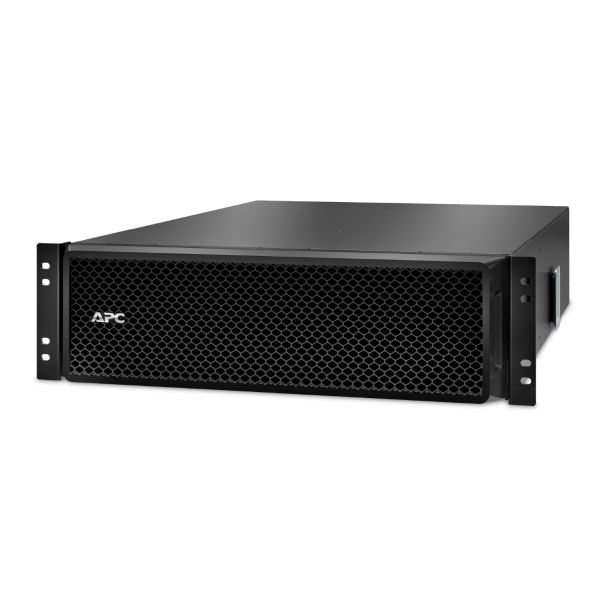

An extended-run battery pack delivering flexible runtime to Smart-UPS On-Line applications.
An extended-run battery pack delivering flexible runtime to Smart-UPS On-Line applications.
Includes: Installation guide, Warranty card
Features & Benefits:
Output | |
|---|---|
| Battery Output Voltage | 192 V |
Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Battery mounting | Stand alone battery stack |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 2 |
Physical | |
| Maximum Height | 130mm, 13.0cm |
| Maximum Width | 432mm, 43.2cm |
| Maximum Depth | 683mm, 68.27cm |
| Net Weight | 91.0kg |
| Shipping weight | 105.5kg |
| Shipping Height | 420mm, 42.0cm |
| Shipping Width | 600mm, 60.0cm |
| Shipping Depth | 1000mm, 100.0cm |
| Colour | Black |
Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 (Non-condensing) % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 (Non-condensing) % |
| Storage Elevation | 0 - 15240meters |
Conformance | |
| Approvals | OSHPD |
| Standard warranty | 2 years repair or replace |
Sustainable Offer Status | |
| RoHS | Compliant |
Battery Regulatory Information
Safety Guide External Battery Packs (XLBPs)
Safety Guide External Battery Packs for Smart-UPS On-Line SRT
Addendum Firmware SRT192BP/SRT192BP2
Installation Guide External Battery Pack SRT192BP/192BP2/SRT192BPJ/SRT192BP2J
Smart-UPS On-Line SRT 2.2 kVA - 10 kVA Brochure 120V and 208V Models
