Smart-UPS On-Line offers high-quality online double-conversion power protection with scalable runtime, extensive management features, and the dependability that millions of IT workers worldwide rely on.
APC Smart-UPS On-Line by Schneider Electric was created with business performance in mind. A high-performance UPS engineered to manage demanding power conditions when uptime and efficiency are essential. Smart-UPS On-Line offers high-quality online double-conversion power protection with scalable runtime, extensive management features, and the dependability that millions of IT workers worldwide rely on.
Smart-UPS On-Line can be configured with multiple external battery packs to meet demanding requirements when business-critical systems require runtime in hours rather than minutes. The integrated PowerChute Network Shutdown software allows unattended graceful shutdown of network operating systems, making it ideal for unstaffed locations where remote, off-site control is critical.
In addition to its best-in-class power density, Smart-UPS On-Line has a high-efficiency 'green mode' that achieves 98% efficiency, saving energy and cooling expenses without sacrificing performance or dependability. The graphical LCD panel with multicolour lighting and intuitive interface provides extensive and accurate information while allowing for local configuration. Temperature-compensated charging enhances battery life, and intelligent algorithms indicate when to replace it. The UPS can notify the user when batteries need to be replaced and can automatically identify when more battery packs are added automatically.
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting support rails, USB cable, Warranty card
Features & Benefits:
Output | |
|---|---|
| Max Configurable Power (Watts) | 2700 Watts / 3000VA |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 2 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 220 V, 240 V |
| Load Crest Factor | 3 : 1 |
| Topology | Double conversion online |
| Waveform type | Sine wave |
| Bypass | Internal bypass (automatic and manual) |
Input | |
| Input frequency | 40 - 70 Hz Auto-sensing |
| Input voltage range for main operations | 100 - 275 Adjustable (half load)V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220 V, 240 V |
Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Included Battery Modules | 1 |
| Typical recharge time | 3hour(s) |
| Nominal Battery Voltage | 96 V |

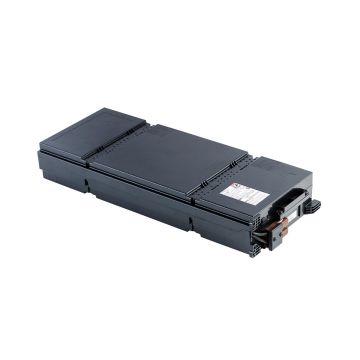

| Replacement Battery | APCRBC152 |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 168 Watts |
| Extendable Run Time | 1 |
| Runtime | View Runtime Graph |
| Efficiency | View Efficiency Graph |
Communications & Management | |
| Interface Port(s) | RJ-45 Serial, Smart-Slot, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Audible and visible alarms prioritized by severity |
| Emergency Power Off (EPO) | Yes |
| Available SmartSlot™ Interface Quantity | 1 |
Surge Protection and Filtering | |
| Surge energy rating | 340Joules |
Physical | |
| Maximum Height | 85mm, 8.5cm |
| Maximum Width | 432mm, 43.2cm |
| Maximum Depth | 635mm, 63.5cm |
| Net Weight | 31.3kg |
| Shipping weight | 39.92kg |
| Shipping Height | 246mm, 24.6cm |
| Shipping Width | 599mm, 59.9cm |
| Shipping Depth | 871mm, 87.1cm |
| Colour | Black |
Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 (Non-condensing) % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 (Non-condensing) % |
| Storage Elevation | 0 - 15240meters |
| Audible noise at 1 meter from surface of unit | 55.0dBA |
| Online thermal dissipation | 703.0BTU/hr |
| Protection Class | IP20 |
Conformance | |
| Approvals | CE, CE Mark, CSA C22.2 No 107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR V2.0 (USA), FCC part 15 class A, OSHPD, Rcm, UL 1778, VDE |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
Sustainable Offer Status | |
| RoHS | Compliant |
