APC SRT1000RMXLI Smart-UPS SRT 1000VA/1000W 230V Online UPS, Rack 2U, inc. Rail Kit

1-2 Day Delivery

1-2 Day Delivery

SKU:
SRT1000RMXLI
MPN:
SRT1000RMXLI
£1,162.82 £969.02

Smart-UPS On-Line offers high-quality online double-conversion power protection with scalable runtime, extensive management features, and the dependability that millions of IT workers worldwide rely on.

Free Express Delivery Over £99*  (1 - 2 Days)

APC Smart-UPS On-Line by Schneider Electric was created with business performance in mind. A high-performance UPS engineered to manage demanding power conditions when uptime and efficiency are essential. Smart-UPS On-Line offers high-quality online double-conversion power protection with scalable runtime, extensive management features, and the dependability that millions of IT workers worldwide rely on.

Smart-UPS On-Line can be configured with multiple external battery packs to meet demanding requirements when business-critical systems require runtime in hours rather than minutes. The integrated PowerChute Network Shutdown software allows unattended graceful shutdown of network operating systems, making it ideal for unstaffed locations where remote, off-site control is critical.

In addition to its best-in-class power density, Smart-UPS On-Line has a high-efficiency 'green mode' that achieves 98% efficiency, saving energy and cooling expenses without sacrificing performance or dependability. The graphical LCD panel with multicolour lighting and intuitive interface provides extensive and accurate information while allowing for local configuration. Temperature-compensated charging enhances battery life, and intelligent algorithms indicate when to replace it. The UPS can notify the user when batteries need to be replaced and can automatically identify when more battery packs are added automatically.

Includes: CD with software, Communication cable, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, USB cable, Warranty card

Features & Benefits:

  • Output power capacity: 1000 Watts / 1000VA
  • 8m 27s run time for 1000 watts load
  • 2U Rack Height
  • Protects equipment after a complete discharge of the battery
  • Auto-recognition of external batteries
  • Energy meter providing power usage for energy conscious users
  • High-efficiency Green Mode
  • SmartSlot Interface
  • Three-year repair or replace warranty (excluding battery) and 2 years for battery
  • Output Connections - (6) IEC 60320 C13 (Battery Backup), (6) IEC 320 C13 (Battery Backup)
  • Input Connections - IEC 60320 C14
  • Cord Length - 1.8m
  • Rackmount

Output

Max Configurable Power (Watts)1000 Watts / 1000VA
Output Voltage DistortionLess than 2 %
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages220 V, 240 V
Load Crest Factor3 : 1
TopologyDouble conversion online
Waveform typeSine wave
BypassBuilt-in bypass

Input

Input frequency40 - 70 Hz Auto-sensing
Input voltage range for main operations100 - 275 40% load, 176 - 275 Full loadV
Number of Power Cords1

Batteries & Runtime

Battery typeLead-acid battery
Included Battery Modules1
Typical recharge time3hour(s)

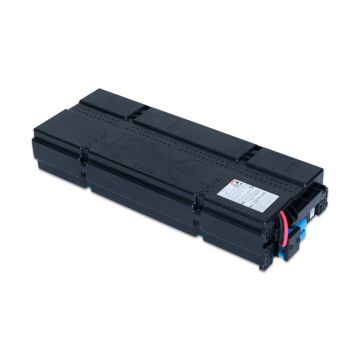

Replacement BatteryAPCRBC155
Expected Battery Life (years)3 - 5
Battery Charge Power (Watts)97 Watts
Extendable Run Time1
RuntimeView Runtime Graph

Communications & Management

Interface Port(s)RJ-45 Serial, Smart-Slot, USB
Control panelMultifunction LCD status and control console
Audible AlarmAudible and visible alarms prioritized by severity
Emergency Power Off (EPO)Yes

Surge Protection and Filtering

Surge energy rating432Joules

Physical

Maximum Height85mm, 8.5cm
Maximum Width432mm, 43.2cm
Maximum Depth505mm, 50.5cm
Net Weight21.0kg
Shipping weight29.6kg
Shipping Height246mm, 24.6cm
Shipping Width594mm, 59.4cm
Shipping Depth749mm, 74.9cm
ColourBlack

Environmental

Operating Temperature0 - 40 °C
Operating Relative Humidity0 - 95 (Non-condensing) %
Operating Elevation0 - 3048meters
Storage Temperature-20 - 50 °C
Storage Relative Humidity0 - 95 (Non-condensing) %
Storage Elevation0 - 15240meters
Audible noise at 1 meter from surface of unit50.0dBA
Online thermal dissipation317.0BTU/hr
Protection ClassIP20

Conformance

ApprovalsCE, EAC
Standard warranty3 years repair or replace (excluding battery) and 2 years for battery

Smart-UPS On-Line Install SRT1000/SRT1500 XLI
Install manual Smart-UPS On-Line SRT1000/SRT1500 XLI

Smart-UPS On-Line Operation SRT1000/SRT1500 XLI

Smart-UPS On-Line 230V Family Brochure
1-10kVA Family Brochure

SRT1000-1500XLI-APC Smart-UPS SRT 1000-1500VA 230V
APC Smart-UPS SRT 1000-1500VA 230V Drawings
