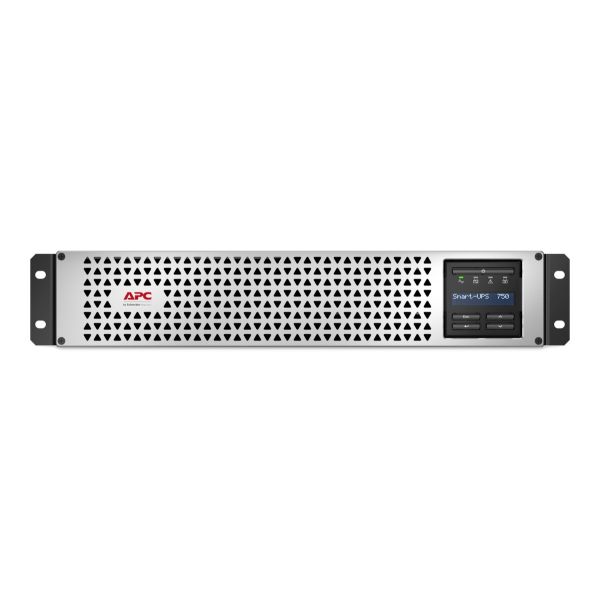

APC SMTL750RMI2UC Smart-UPS Lithium-ion 750VA/600W 230V Line Interactive UPS, Rack 2U

Call us for availability and ETA on: 0800 254 5655

Call us for availability and ETA on: 0800 254 5655

SKU:
SMTL750RMI2UC
MPN:
SMTL750RMI2UC
£1,021.61 £851.34

Perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages.

Free Express Delivery Over £99*  (1 - 2 Days)

The APC Smart-UPS by Schneider Electric is perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.

Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LCD status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a five-year repair or replace warranty.

Includes: Installation guide, Rack Mounting support rails, Smart-UPS signalling RS-232 cable, USB cable

Features & Benefits:

  • Output power capacity: 600 Watts / 750VA
  • 6m 2s run time for 600 watts load
  • Lithium-ion batteries provide twice the service life of a typical lead-acid battery
  • 2U rack height
  • High-efficiency Green Mode
  • SmartConnect port for remote monitoring
  • Boost and trim automatic voltage regulation
  • Five-year repair or replace warranty
  • Output Connections - (6) IEC 60320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup)
  • Input Connections - IEC 30320 C14
  • Rackmount

Output

Max Configurable Power (Watts)600 Watts / 750VA
Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage
Output Voltage DistortionLess than 5 %
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages220 V, 240 V
TopologyLine interactive
Waveform typeSine wave
Transfer Time6 ms typical : 10 ms maximum

Input

Input frequency50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations151 - 302 Adjustable, 160 - 286V
Number of Power Cords1
Other Input Voltages220 V, 240 V

Batteries & Runtime

Battery typeLi-Ion (Lithium-Ion)
Typical recharge time3hour(s)
Expected Battery Life (years)8 - 10
Battery Charge Power (Watts)51 Watts
Battery Volt-Amp-Hour Capacity120
RuntimeView Runtime Graph
EfficiencyView Efficiency Graph

Communications & Management

Interface Port(s)RJ-45 Serial, SmartSlot, USB
Control panelMultifunction LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity1

Surge Protection and Filtering

Surge energy rating645Joules
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height86mm, 8.6cm
Maximum Width438mm, 43.8cm
Maximum Depth318mm, 31.8cm
Net Weight17.69kg
Shipping weight18.6kg
Shipping Height229mm, 22.9cm
Shipping Width584mm, 58.4cm
Shipping Depth472mm, 47.2cm
ColourBlack

Environmental

Operating Temperature0 -€“ 40 °C
Operating Relative Humidity0 -€“ 95 %
Operating Elevation0 -€“ 3048meters
Storage Temperature-10 -€“ 40 °C
Storage Relative Humidity0 -€“ 95 %
Storage Elevation0 -€“ 7620meters
Audible noise at 1 meter from surface of unit41.0dBA
Online thermal dissipation70.0BTU/hr

Conformance

ApprovalsC-Tick, CE, EAC, GS Mark, IEC 60950, IEC 62040-1-1, IEC 62040-1-2, UL 1973
Equipment protection policyLifetime : $150000
Standard warranty3 years repair or replace (excluding battery) and 2 years for battery
