Perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages.

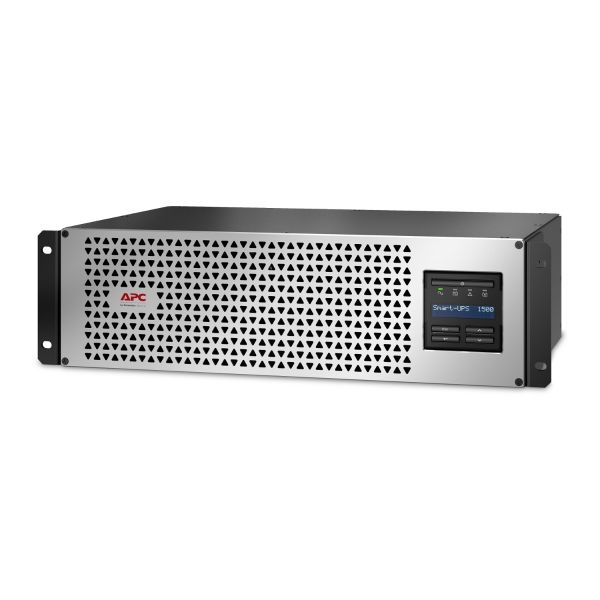

The APC Smart-UPS by Schneider Electric is perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.
Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LCD status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a five-year repair or replace warranty.
Includes: Installation guide, Rack Mounting support rails, Smart-UPS signalling RS-232 cable, USB cable
Features & Benefits:
Output | |
|---|---|
| Max Configurable Power (Watts) | 1350 Watts / 1500VA |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 5 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 220 V, 240 V |
| Topology | Line interactive |
| Waveform type | Sine wave |
| Transfer Time | 6 ms typical : 10 ms maximum |
Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 160 - 286V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220 V, 240 V |
Batteries & Runtime | |
| Battery type | Li-Ion (Lithium-Ion) |
| Typical recharge time | 3hour(s) |
| Expected Battery Life (years) | 8 - 10 |
| Battery Charge Power (Watts) | 100 Watts |
| Battery Volt-Amp-Hour Capacity | 307 |
| Runtime | View Runtime Graph |
| Efficiency | View Efficiency Graph |
Communications & Management | |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Available SmartSlot™ Interface Quantity | 1 |
Surge Protection and Filtering | |
| Surge energy rating | 645Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical | |
| Maximum Height | 131mm, 13.1cm |
| Maximum Width | 438mm, 43.8cm |
| Maximum Depth | 302mm, 30.2cm |
| Net Weight | 19.5kg |
| Shipping weight | 22.68kg |
| Shipping Height | 279mm, 27.9cm |
| Shipping Width | 584mm, 58.4cm |
| Shipping Depth | 448mm, 44.8cm |
| Colour | Black |
Environmental | |
| Operating Temperature | 0 -€“ 40 °C |
| Operating Relative Humidity | 0 -€“ 95 % |
| Operating Elevation | 0 -€“ 3048meters |
| Storage Temperature | -10 -€“ 40 °C |
| Storage Relative Humidity | 0 -€“ 95 % |
| Storage Elevation | 0 -€“ 7620meters |
| Audible noise at 1 meter from surface of unit | 45.0dBA |
| Online thermal dissipation | 135.0BTU/hr |
| Protection Class | IP20 |
Conformance | |
| Approvals | C-Tick, CE, EAC, GS Mark, IEC 60950, IEC 62040-1-1, IEC 62040-1-2, UL 1973 |
| Equipment protection policy | Lifetime : $150000 |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
SMART-UPS SMTL750/1000/1500RMI 2/3UC
PRODUCT SAFETY DATA SHEET of LI-ION BATTERY PACK Packed With Equipment SMTL series
APC Smart-UPS Lithium Ion Line-Interactive (SCL and SMTL) Shipping Guide
Shipping Guide - APC Smart-UPS Lithium-Ion Line Interactive
