Perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages.

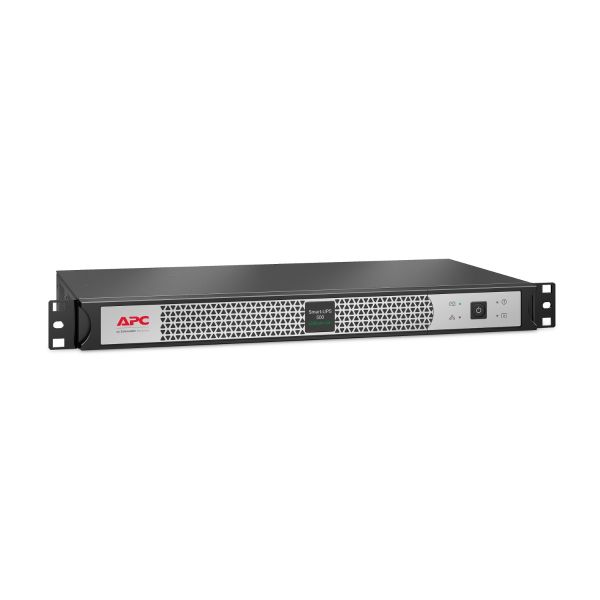

The APC Smart-UPS SC by Schneider Electric is perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.
This Smart-UPS SC offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LED status display and audible alarms provide indicators of power conditions. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a five-year repair or replace warranty and a $150000 equipment protection policy.
Includes: Installation guide, Rack mounting support rails, USB cable
Features & Benefits:
Output | |
|---|---|
| Max Configurable Power (Watts) | 400 Watts / 500VA |
| Waveform type | Sine wave |
| Transfer Time | 6 ms typical : 10 ms maximum |
Input | |
| Input frequency | 47 - 63 Hz |
| Input voltage range for main operations | 208 - 253V |
Batteries & Runtime | |
| Battery type | Li-Ion (Lithium-Ion) |
| Typical recharge time | 3hour(s) |
| Expected Battery Life (years) | 8 - 10 |
| Battery Charge Power (Watts) | 10 Watts |
| Runtime | View Runtime Graph |
| Efficiency | View Efficiency Graph |
Communications & Management | |
| Control panel | LED status display with on line : on battery : replace battery and building wiring fault |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering | |
| Surge energy rating | 510Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical | |
| Rack Height | 1U |
| Maximum Height | 44mm, 4.4cm |
| Maximum Width | 432mm, 43.2cm |
| Maximum Depth | 232mm, 23.2cm |
| Net Weight | 4.1kg |
| Shipping weight | 6.49kg |
| Shipping Height | 168mm, 16.8cm |
| Shipping Width | 590mm, 59.0cm |
| Shipping Depth | 337mm, 33.7cm |
| Colour | Black |
Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 10 - 90 (Non-condensing) % |
| Operating Elevation | 0 - 1999.79meters |
| Storage Temperature | -10 - 40 °C |
| Storage Relative Humidity | 10 - 90 (Non-condensing) % |
| Storage Elevation | 0 - 14999.8meters |
| Audible noise at 1 meter from surface of unit | 45.0dBA |
Conformance | |
| Approvals | C-Tick, CE, EAC, GS Mark, IEC 60950, IEC 62040-1-1, IEC 62040-1-2, Rcm |
| Equipment protection policy | Lifetime : $150000 |
| Standard warranty | 5 year repair or replace |
Sustainable Offer Status | |
| RoHS | Compliant |
SMART-UPS SCL500RMI1 UC/UNC Operation Manual
Operation Manual for SMART-UPS SCL500RMI1 UC/UNC
SMART-UPS SCL500RMI1UC
Installation guide of Smart-UPS SCL500RMI1UC 230 V
APC Smart-UPS Lithium Ion Line-Interactive (SCL and SMTL) Shipping Guide
Shipping Guide - APC Smart-UPS Lithium-Ion Line Interactive
