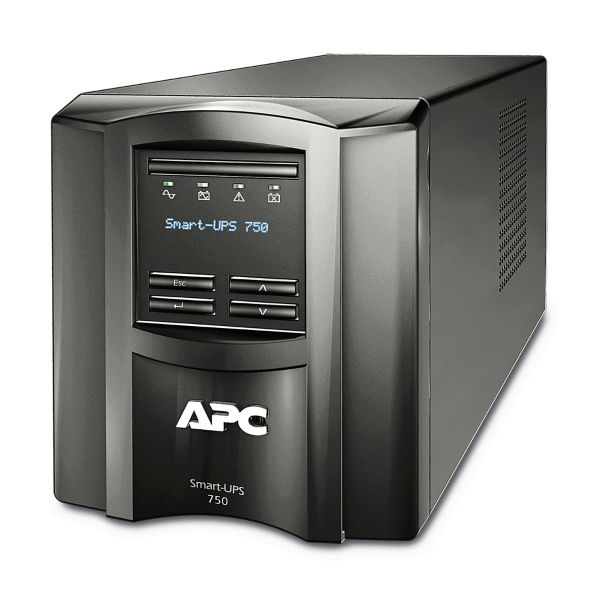

APC SMT750IC Smart-UPS 750VA/500W 230V Line Interactive UPS

1-2 Day Delivery

1-2 Day Delivery

SKU:
SMT750IC
MPN:
SMT750IC
£389.88 £324.90

Perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages.

Free Express Delivery Over £99*  (1 - 2 Days)

The APC Smart-UPS by Schneider Electric is perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.

Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LCD status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a three-year repair or replace warranty (excluding battery) and 2 years for the battery.

Includes: USB cable

Features & Benefits:

  • Output power capacity: 500 Watts / 750VA
  • 4m 34s run time for 500 watts load
  • High-efficiency Green Mode
  • SmartConnect port for remote monitoring
  • Boost and trim automatic voltage regulation
  • Three-year repair or replace warranty
  • Output Connections - (2) IEC Jumpers (Battery Backup), (6) IEC 320 C13 (Battery Backup)
  • Input Connections - IEC 320 C14
  • Cord Length - 1.8m
  • Tower

Output

Max Configurable Power (Watts)500 Watts / 750VA
Output Voltage DistortionLess than 5 %
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages220 V, 240 V
TopologyLine interactive
Waveform typeSine wave
Transfer Time6 ms typical : 10 ms maximum

Input

Input frequency50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations151 - 302 Adjustable, 160 - 280V
Number of Power Cords1
Other Input Voltages220 V, 240 V

Batteries & Runtime

Battery typeLead-acid battery
Typical recharge time3hour(s)
Nominal Battery Voltage24V
Replacement BatteryRBC48
Expected Battery Life (years)3 - 5
RBC Quantity1
Battery Charge Power (Watts)49 Watts
RuntimeView Runtime Graph
EfficiencyView Efficiency Graph

Communications & Management

Interface Port(s)SmartSlot, USB
Control panelMultifunction LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)Optional
Available SmartSlot™ Interface Quantity1

Surge Protection and Filtering

Surge energy rating540Joules
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height161mm, 16.1cm
Maximum Width138mm, 13.8cm
Maximum Depth369mm, 36.9cm
Net Weight11.8kg
Shipping weight14.23kg
Shipping Height301mm, 30.1cm
Shipping Width278mm, 27.8cm
Shipping Depth499mm, 49.9cm
ColourBlack

Environmental

Operating Temperature0 - 40 °C
Operating Relative Humidity0 - 95 %
Operating Elevation0 - 3048meters
Storage Temperature-15 - 45 °C
Storage Relative Humidity0 - 95 %
Storage Elevation0 - 15240meters
Audible noise at 1 meter from surface of unit40.0dBA
Online thermal dissipation70.0BTU/hr

Conformance

ApprovalsCE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, Rcm, VDE
Standard warranty3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHSCompliant

Smart-UPS SMT 750/1000/1500/2200/3000 VA 230 Vac Tower
Installation Guide for Smart-UPS SMT750IC, SMT1000IC, SMT1500IC, SMT2200IC and SMT3000IC - Tower

Operation Smart-UPS SMT 750C/1000C/1500C/2200C/3000C VA 120/230 Vac Tower/RM2U

Connected Smart-UPS Brochure Europe
Product overview brochure for Connected Smart-UPS
