Perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages.

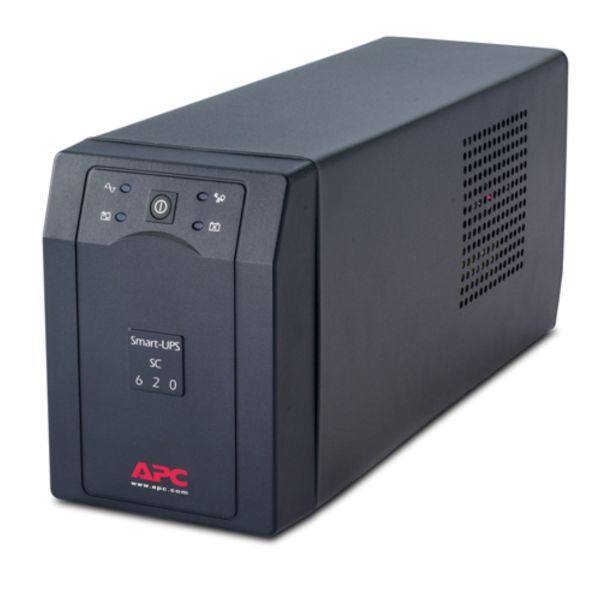

The APC Smart-UPS SC by Schneider Electric is perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.
This Smart-UPS SC offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LED status display and audible alarms provide indicators of power conditions. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a two-year repair or replace warranty.
Includes: CD with software, Smart-UPS signalling RS-232 cable, User manual
Features & Benefits:
Output | |
|---|---|
| Max Configurable Power (Watts) | 390 Watts / 620VA |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 2 ms typical |
Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 195 - 265V |
Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 5hour(s) |
| Nominal Battery Voltage | 12V |

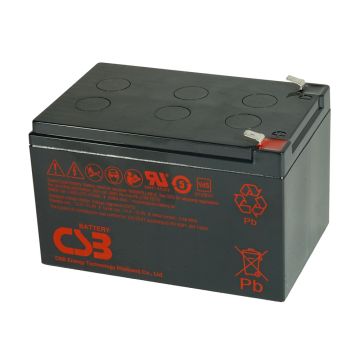

| Replacement Battery | RBC4 |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 26 Watts |
| Runtime | View Runtime Graph |
| Efficiency | View Efficiency Graph |
Communications & Management | |
| Interface Port(s) | DB-9 RS-232 |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering | |
| Surge energy rating | 320Joules |
| Data Line Protection | RJ45 modem/fax/DSL/10-100 base-T protection |
| Filtering | Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical | |
| Maximum Height | 168mm, 16.8cm |
| Maximum Width | 119mm, 11.9cm |
| Maximum Depth | 375mm, 37.5cm |
| Net Weight | 12.27kg |
| Shipping weight | 13.18kg |
| Shipping Height | 318mm, 31.8cm |
| Shipping Width | 262mm, 26.2cm |
| Shipping Depth | 508mm, 50.8cm |
| Color | Grey |
Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 15240meters |
| Audible noise at 1 meter from surface of unit | 45.0dBA |
| Online thermal dissipation | 70.0BTU/hr |
Conformance | |
| Approvals | CE, EAC, GOST, VCCI, VDE |
| Standard warranty | 2 years repair or replace |
Sustainable Offer Status | |
| RoHS | Compliant |
Smart-UPS C 420/620 VA 110/120/230 Vac Tower
