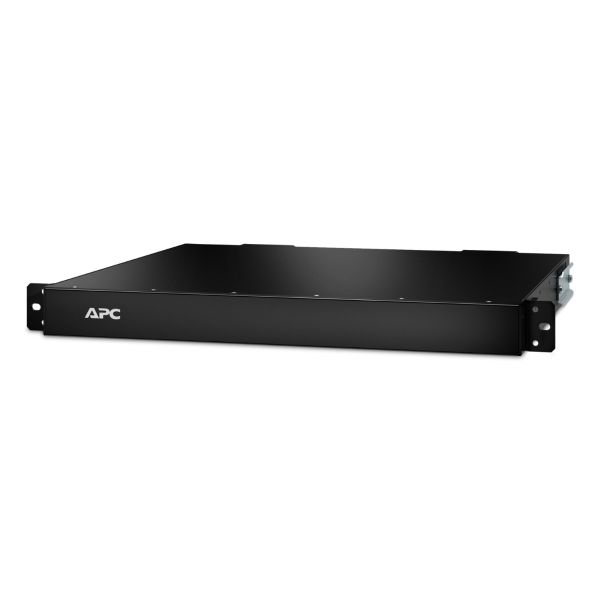

The APC by Schneider Electric Marine Application Filters connects to Marine Smart-UPS models SRT5KRMXLIM/SRT6KRMXLIM. A filter and an uninterruptible power supply (UPS) work together to meet DNV Type Approval, Class B EMI requirements.
The APC by Schneider Electric Marine Application Filters connects to Marine Smart-UPS models SRT5KRMXLIM/SRT6KRMXLIM. A filter and an uninterruptible power supply (UPS) work together to meet DNV Type Approval, Class B EMI requirements.
Includes: Installation guide, Mounting hardware, User manual
Features & Benefits:
Output | |
|---|---|
| Other Output Voltages | 208 V, 220 V, 230 V, 240 V |
| Maximum Total Current Draw | 50 |
Input | |
| Input frequency | 45 - 65 Hz |
| Acceptable Input Voltage | 100 - 240VAC |
| Load Capacity | 6000VA |
| Maximum Input Current | 50A |
| Maximum Line Current | 50A |
| Regulatory Derated Input Current (North America) | 50A |
Physical | |
| Maximum Height | 44mm, 4.4cm |
| Maximum Width | 483mm, 48.3cm |
| Maximum Depth | 330mm, 33.0cm |
| Net Weight | 6.73kg |
| Shipping weight | 8.27kg |
| Shipping Height | 76mm, 7.6cm |
| Shipping Width | 559mm, 55.9cm |
| Shipping Depth | 406mm, 40.6cm |
| Colour | Black |
Environmental | |
| Operating Temperature | 0 - 55 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -25 - 75 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 15240meters |
Conformance | |
| Approvals | DNV |
| Standard warranty | 2 year (manufacturer's defect) |
Sustainable Offer Status | |
| RoHS | Compliant |
Installation Smart-UPS SRT6M Filter
Installation guide for Smart-UPS SRT6M Filter
Marine 2G Smart-UPS On-Line 5-6 kVA Brochure
Marine 2G Smart-UPS On-Line 5-6 kVA Brochure
