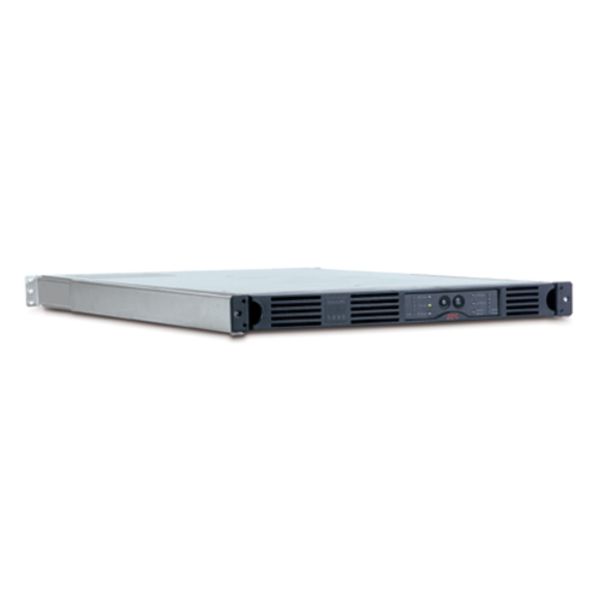

APC SUA1000RMI1U Smart-UPS 1000VA/640W 230V Line Interactive UPS, Rack 1U

Out of stock
£976.07 £813.39

Perfect for small and medium-sized organisations wishing to protect networking critical servers and voice/data switches against power disruptions and outages.

Free Express Delivery Over £99*  (1 - 2 Days)

The APC Smart-UPS by Schneider Electric is perfect for small and medium-sized organisations wishing to safeguard networking equipment and point-of-sale (POS) systems against power disruptions and outages. This high-performance Uninterruptible Power Supply (UPS) safeguards electronic equipment from blackouts, brownouts, sags and surges, small utility power fluctuations and significant disruptions. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less critical equipment.

Smart-UPS offers hot-swap batteries, network-grade protection and built-in data line protection for worry-free uninterruptible power protection and high availability. To ensure smooth running, a handy LED status display and audible alarms provide comprehensive status information at a glance. Additionally, automatic battery self-testing ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a two-year repair or replace warranty.

Includes: CD with software, Rack Mounting brackets, Rack mounting support rails, Smart-UPS signalling RS-232 cable, USB cable, User manual

Features & Benefits:

  • Output power capacity: 640 Watts / 1000VA
  • 5m 26s run time for 640 watts load
  • 1U Rack Height
  • Front-access servicing for simple installation and maintenance
  • USB connectivity providing management of the UPS
  • Boost and trim automatic voltage regulation
  • Two-year repair or replace warranty
  • Output Connections - (2) IEC Jumpers (Battery Backup), (4) IEC 320 C13 (Battery Backup)
  • Input Connections - IEC 320 C14
  • Rack/Tower


Max Configurable Power (Watts)640 Watts / 1000VA
Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage
Output Voltage DistortionLess than 5 % at full load
Output Frequency (sync to mains)47 - 53 Hz For 50 Hz nominal Sync to mains, 57 - 63 Hz For 60 Hz nominal Sync to mains
TopologyLine interactive
Waveform typeSine wave


Input frequency50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations151 - 302 Adjustable, 160 - 286V
Number of Power Cords1

Batteries & Runtime

Battery typeLead-acid battery
Typical recharge time2hour(s)
Replacement BatteryRBC34
Expected Battery Life (years)4 - 6
RBC Quantity1
Battery Charge Power (Watts)107 Watts
RuntimeView Runtime Graph

Communications & Management

Interface Port(s)DB-9 RS-232, SmartSlot, USB
Control panelLED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity1

Surge Protection and Filtering

Surge energy rating480Joules
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449


Maximum Height44mm, 4.4cm
Maximum Width432mm, 43.2cm
Maximum Depth660mm, 66.0cm
Net Weight21.82kg
Shipping weight25.45kg
Shipping Height191mm, 19.1cm
Shipping Width559mm, 55.9cm
Shipping Depth775mm, 77.5cm


Operating Temperature0 - 40 °C
Operating Relative Humidity0 - 95 %
Operating Elevation0 - 3048meters
Storage Temperature-15 - 45 °C
Storage Relative Humidity0 - 95 %
Storage Elevation0 - 15240meters
Audible noise at 1 meter from surface of unit55.0dBA
Online thermal dissipation130.0BTU/hr


ApprovalsC-Tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Standard warranty2 years repair or replace

Sustainable Offer Status


Addendum Install 750/1000 VA RM 1U 120/230 Vac
Addendum for installation of long cleat for 750/1000 VA RM 1U 120/230 Vac

Smart-UPS Warranty Registration Card - International
Warranty Registration Card

Smart-UPS SUA 750/1000 VA 100/120/230 Vac Rack-Mount1U
