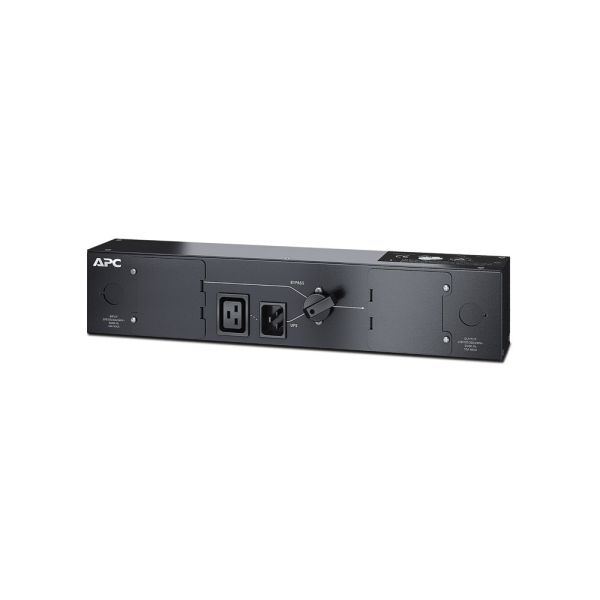

APC Service Bypass PDU 230V, 16A, Hardwire

Call us for availability and ETA on: 0800 254 5655

Call us for availability and ETA on: 0800 254 5655

SKU:
SBP3000RMHW
MPN:
SBP3000RMHW
£339.85 £283.21
A service bypass panel that is exceptionally reliable for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS devices.
Free Express Delivery Over £99*  (1 - 2 Days)

A service bypass panel that is exceptionally reliable for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS devices.

Includes: Rack mounting brackets, User manual

Features & Benefits:

  • 2U Rack Height
  • Quick Transfer Rate - The transfer rate is within the normal range for the industry and within the time that most power supplies drop loads. The change from one power source to another doesn't affect connected devices in any way, so their performance doesn't change.
  • Wrap Around System Bypass - A bypass panel for breaker maintenance to isolate the UPS from the essential load
  • Output Connections - (1) IEC Jumpers, (1) Hard wire 3-wire (H N + E)
  • Nominal Output Voltage - 230V
  • Nominal Input Voltage - 230V

    • Output
    Efficiency at Full Load99 % %
    Overload ProtectionYes
    Cord Length1meters
    Maximum Total Current Draw16
    Input
    Input frequency50/60 Hz
    Acceptable Input Voltage220 - 240VAC
    Efficiency at Full Load99 % %
    Load Power Factor Range0 to 1
    Load Capacity3000VA
    Maximum Input Current16A
    Maximum Line Current16A
    Physical
    Maximum Height89mm, 8.9cm
    Maximum Width432mm, 43.2cm
    Maximum Depth76mm, 7.6cm
    Net Weight2.27kg
    Shipping weight3.45kg
    Shipping Height151mm, 15.1cm
    Shipping Width463mm, 46.3cm
    Shipping Depth295mm, 29.5cm
    ColourBlack
    Units per Pallet56.0
    Environmental
    Operating Temperature0 - 40 °C
    Operating Relative Humidity0 - 95 %
    Operating Elevation0 - 4572meters
    Storage Temperature-15 - 45 °C
    Storage Relative Humidity0 - 95 %
    Storage Elevation0 - 15240meters
    Conformance
    ApprovalsVDE
    Standard warranty2 years repair or replace
    Sustainable Offer Status
    RoHSCompliant

    Service Bypass Panel Smart-UPS 1500/2200/3000 RM Series
