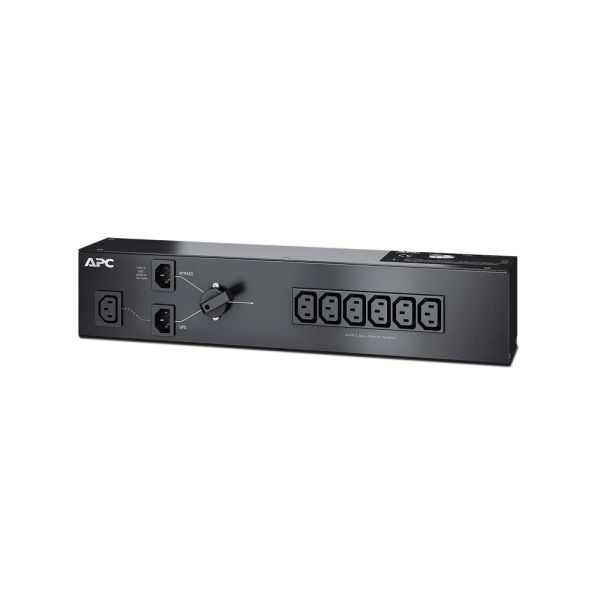

APC Service Bypass PDU 230V, 10A, IEC Output (6) C13

Call us for availability and ETA on: 0800 254 5655

Call us for availability and ETA on: 0800 254 5655

SKU:
SBP1500RMI
MPN:
SBP1500RMI
£317.41 £264.51
A service bypass panel that is exceptionally reliable for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS devices.
Free Express Delivery Over £99*  (1 - 2 Days)

A service bypass panel that is exceptionally reliable for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS devices.

Includes: Rack mounting brackets, User manual

Features & Benefits:

  • 2U Rack Height
  • Quick Transfer Rate - The transfer rate is within the normal range for the industry and within the time that most power supplies drop loads. The change from one power source to another doesn't affect connected devices in any way, so their performance doesn't change.
  • Wrap Around System Bypass - A bypass panel for breaker maintenance to isolate the UPS from the essential load
  • Output Connections - (1) IEC Jumpers, (6) IEC 60320 C13
  • Nominal Output Voltage - 230V
  • Nominal Input Voltage - 230V
  • Input Connections - IEC 60320 C14
  • Cord Length - 2m
  • Output
    Efficiency at Full Load99 % %
    Overload ProtectionYes
    Maximum Total Current Draw32
    Input
    Input frequency50/60 Hz
    Number of Power Cords1
    Efficiency at Full Load99 % %
    Load Power Factor Range0 to 1
    Load Capacity7680VA
    Maximum Input Current32A
    Maximum Line Current32A
    Physical
    Maximum Height89mm, 8.9cm
    Maximum Width432mm, 43.2cm
    Maximum Depth660mm, 66.0cm
    Net Weight11.36kg
    Shipping weight23.18kg
    Shipping Height203mm, 20.3cm
    Shipping Width610mm, 61.0cm
    Shipping Depth991mm, 99.1cm
    ColourBlack
    Units per Pallet10.0
    Environmental
    Operating Temperature-20 - 50 °C
    Operating Relative Humidity0 - 95 %
    Operating Elevation0 - 4572meters
    Storage Temperature-25 - 65 °C
    Storage Relative Humidity0 - 95 %
    Storage Elevation0 - 15240meters
    Conformance
    ApprovalsCSA, EN/IEC 62040-1, GOST, UL 1778
    Standard warranty2 years (parts only)
