1 in stock for 1-2 Day Delivery

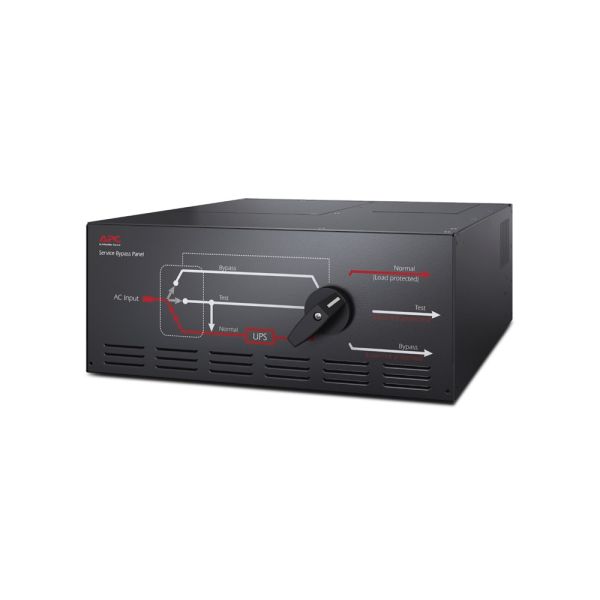

A service bypass panel that is exceptionally reliable for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS devices.
Includes: Installation guide, Rack mounting brackets, User manual
Features & Benefits:
| Output | |
|---|---|
| Efficiency at Full Load | 99 % % |
| Other Output Voltages | 220 V, 240 V |
| Overload Protection | Yes |
| Maximum Total Current Draw | 125 |
| Input | |
| Input frequency | 50/60 Hz |
| Number of Power Cords | 1 |
| Efficiency at Full Load | 99 % % |
| Load Power Factor Range | 0 to 1 |
| Load Capacity | 20000VA |
| Maximum Input Current | 125A |
| Maximum Line Current | 125A |
| Physical | |
| Maximum Height | 178mm, 17.8cm |
| Maximum Width | 432mm, 43.2cm |
| Maximum Depth | 572mm, 57.2cm |
| Net Weight | 18.78kg |
| Shipping weight | 31.36kg |
| Shipping Height | 305mm, 30.5cm |
| Shipping Width | 610mm, 61.0cm |
| Shipping Depth | 843mm, 84.3cm |
| Colour | Black |
| Units per Pallet | 6.0 |
| Environmental | |
| Operating Temperature | -20 - 50 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0 - 4572meters |
| Storage Temperature | -40 - 65 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 15240meters |
| Conformance | |
| Approvals | CSA, EN 60950, GOST, IEC 60950, UL 1778 |
| Standard warranty | 2 years (parts only) |
Estimated delivery cost for APC Service Bypass Panel 230V, 125A, 2x Hardwire Input Connectors, IEC Output (8) C19 is £0.
