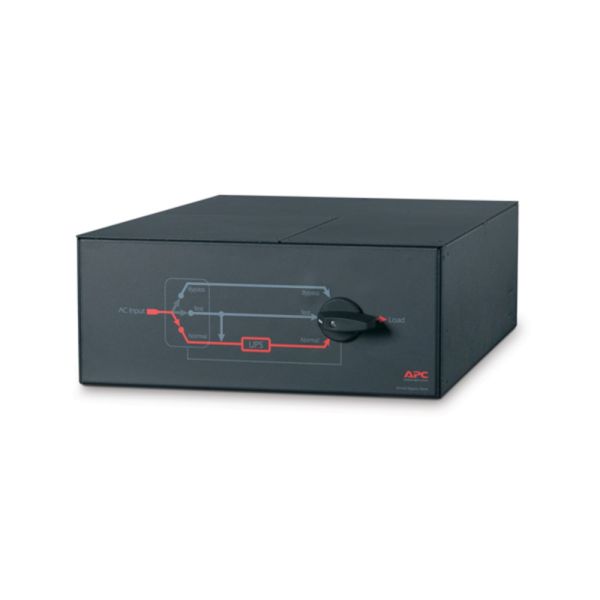

APC Service Bypass Panel 230V, 100A, MBB, Hardwire Input, (3) 30A Hardwire Output

Call us for availability and ETA on: 0800 254 5655

Call us for availability and ETA on: 0800 254 5655

SKU:
SBP16KRMI4U
MPN:
SBP16KP
£1,601.12 £1,334.27
A service bypass panel that is exceptionally reliable for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS devices.
Free Express Delivery Over £99*  (1 - 2 Days)

A service bypass panel that is exceptionally reliable for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS devices.

Includes: Installation guide, Rack mounting brackets, User manual

Features & Benefits:

  • 4U Rack Height
  • Wrap Around System Bypass - A bypass panel for breaker maintenance to isolate the UPS from the essential load
  • Output Connections - (1) Hard wire 4-wire (2P + N + E), (1) Hard wire 3-wire (H N + E)
  • Nominal Output Voltage - 120V, 200V, 208V, 230V
  • Nominal Input Voltage - 200V, 208V, 230V, 480V 3PH
  • Input Connections - Hard wire 3-wire (2P + E), Hard wire 3-wire (H N + E), Hard wire 4-wire (2P + N + E), Hard wire 5-wire (3P + N + E)
  • Output
    Efficiency at Full Load99 % %
    Overload ProtectionYes
    Maximum Total Current Draw100
    Input
    Input frequency50/60 Hz
    Number of Power Cords1
    Efficiency at Full Load99 % %
    Load Power Factor Range0 to 1
    Load Capacity20000VA
    Maximum Input Current100A
    Maximum Line Current100A
    Physical
    Maximum Height178mm, 17.8cm
    Maximum Width432mm, 43.2cm
    Maximum Depth673mm, 67.3cm
    Net Weight21.82kg
    Shipping weight31.82kg
    Shipping Height305mm, 30.5cm
    Shipping Width610mm, 61.0cm
    Shipping Depth991mm, 99.1cm
    ColourBlack
    Environmental
    Operating Temperature-20 - 45 °C
    Operating Relative Humidity0 - 95 %
    Operating Elevation0 - 4572meters
    Storage Temperature-40 - 65 °C
    Storage Relative Humidity0 - 95 %
    Storage Elevation0 - 15240meters
    Conformance
    ApprovalsCSA, EN 60950, GOST, IEC 60950, UL 1778
    Standard warranty2 years (parts only)
