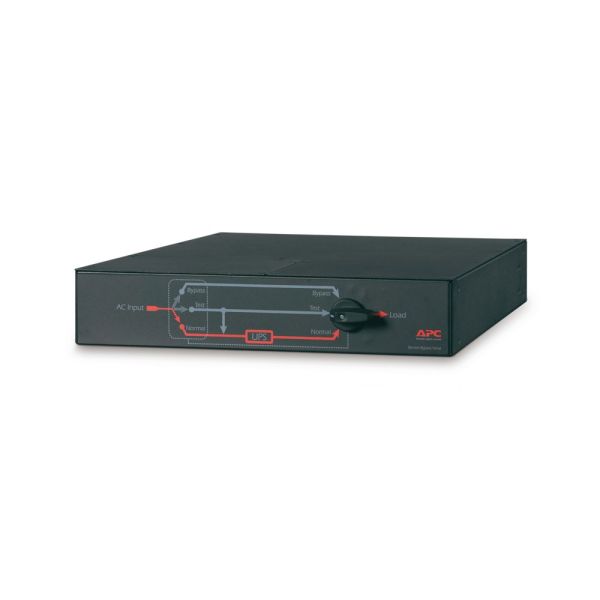

APC Service Bypass Panel 100-240V, 30A, BBM, Hardwire Input/Output

Call for availability 0800 2545655

Call for availability 0800 2545655

SKU:
SBP3000
MPN:
SBP3000
£679.61 £566.34
A service bypass panel that is exceptionally reliable for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS devices.
Free Express Delivery Over £99*  (1 - 2 Days)

A service bypass panel that is exceptionally reliable for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS devices.

Includes: Rack mounting brackets, User manual

Features & Benefits:

  • 2U Rack Height
  • Wall mountable - Ideal for server and network closets
  • Wrap Around System Bypass - A bypass panel for breaker maintenance to isolate the UPS from the essential load
  • Output Connections - (1) Hard wire 3-wire (H N + E)
  • Nominal Output Voltage - 100V, 120V, 230V
  • Nominal Input Voltage - 100V, 120V, 230V
  • Input Connections - Hard wire 3-wire (H N + E)
  • Output
    Efficiency at Full Load99 % %
    Other Output Voltages110 V
    Overload ProtectionYes
    Maximum Total Current Draw30
    Input
    Input frequency50/60 Hz
    Efficiency at Full Load99 % %
    Load Power Factor Range0 to 1
    Maximum Input Current30A
    Maximum Line Current30A
    Physical
    Maximum Height89mm, 8.9cm
    Maximum Width432mm, 43.2cm
    Maximum Depth635mm, 63.5cm
    Net Weight12.0kg
    Shipping weight22.0kg
    Shipping Height203mm, 20.3cm
    Shipping Width610mm, 61.0cm
    Shipping Depth991mm, 99.1cm
    ColourBlack
    Environmental
    Operating Temperature-20 - 50 °C
    Operating Relative Humidity0 - 95 %
    Operating Elevation0 - 4572meters
    Storage Temperature-40 - 65 °C
    Storage Relative Humidity0 - 95 %
    Storage Elevation0 - 15240meters
    Conformance
    ApprovalsCSA, EN 60950, GOST, IEC 60950, UL 1778, VDE
    Standard warranty2 years (parts only)
    Sustainable Offer Status
    RoHSCompliant
