Discontinued

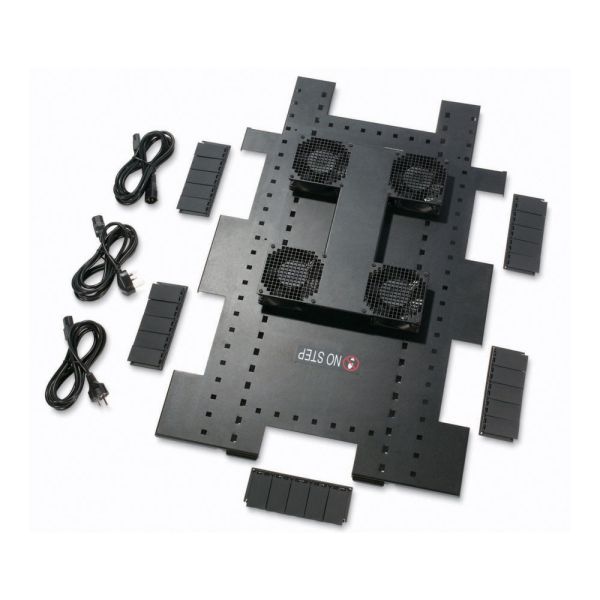

The Rack Fan Tray is an inexpensive way for removing heat from a Netshelter Enclosure. The device is easily installed on the enclosure's roof and removes heat from the rack's roof. Wall-mounted enclosures offer the extra installation option of rack fan tray systems at the rack's base. The fan trays are designed to increase airflow from the bottom to the top of the enclosure.
Includes: Installation guide
Features & Benefits:
Input | |
|---|---|
| Input frequency | 50/60 Hz |
| Number of Power Cords | 1 |
Physical | |
| Maximum Height | 60mm, 6.0cm |
| Maximum Width | 574mm, 57.4cm |
| Maximum Depth | 893mm, 89.3cm |
| Net Weight | 8.41kg |
| Shipping weight | 12.5kg |
| Shipping Height | 152mm, 15.2cm |
| Shipping Width | 749mm, 74.9cm |
| Shipping Depth | 991mm, 99.1cm |
| Colour | Black |
Environmental | |
| Audible noise at 1 meter from surface of unit | 62.0dBA |
Conformance | |
| Approvals | CSA C22.2 No 60950, PSE, UL 60950, VDE |
| Standard warranty | 2 years repair or replace |
Sustainable Offer Status | |
| RoHS | Compliant |
General | |
| Air Flow | 207.66lps |
Roof Fan Tray for NetShelter™ SX Cabinets
Installation
Enclosure and Rack Systems Brochure
Overview of racks and enclosures and accessories
