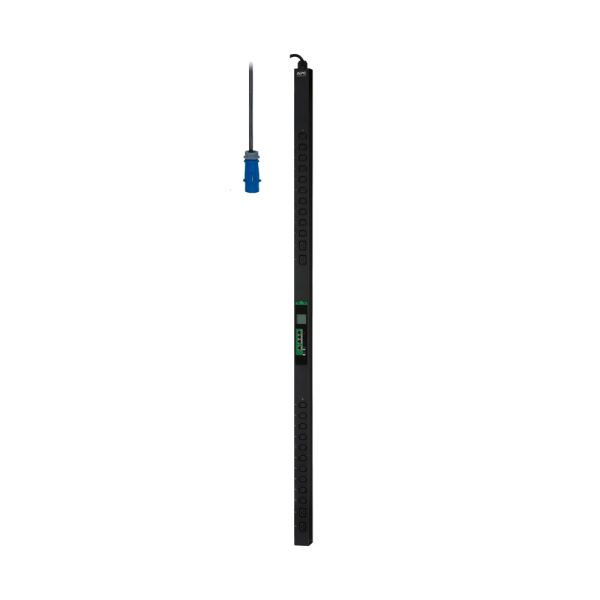

The Easy Basic PDU from APC is a rack power distribution unit (PDU) that is extremely reliable and offers much more than a standard power strip for use in server and network racks.
The Easy Switched Rack Power Distribution Units (Rack PDU) from APC enable on/off outlet switching, intelligent power management, and load monitoring, in addition to a multitude of other functions.
Includes: Installation guide, User manual, Vertical mounting brackets
Features & Benefits:
Output | |
|---|---|
| Maximum Total Current Draw | 16 |
Input | |
| Input frequency | 50/60 Hz |
| Number of Power Cords | 1 |
| Load Capacity | 3680VA |
| Maximum Input Current | 16A |
Physical | |
| Maximum Height | 1738mm, 173.8cm |
| Maximum Width | 55mm, 5.5cm |
| Maximum Depth | 62mm, 6.2cm |
| Net Weight | 7.3kg |
| Shipping weight | 8.5kg |
| Shipping Height | 1950mm, 195.0cm |
| Shipping Width | 160mm, 16.0cm |
| Shipping Depth | 110mm, 11.0cm |
| Colour | Black |
Environmental | |
| Operating Temperature | -5 - 45 °C |
| Operating Relative Humidity | 5 - 95 % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -25 - 65 °C |
| Storage Relative Humidity | 5 - 95 % |
| Storage Elevation | 0 - 15240meters |
Conformance | |
| Approvals | CE, EAC, TÜV |
| Standard warranty | 1 year repair or replace |
Sustainable Offer Status | |
| RoHS | Compliant |
EPDU1116S_EPDU1132S_Installation_manual_EN
EASY PDU SECURITY HANDBOOK
This guide documents security features for Easy Rack PDUs.
EASY RACK PDU 1 PHASE SWITCHED USER GUIDE
EASY RACK PDU 1 PHASE SWITCHED USER GUIDE
EasyRackPDU_Product_Brochure_EN
EPDU1116S_EPDU1132S_SPEC_EN
EPDU1116S_EPDU1132S_SPEC_EN
