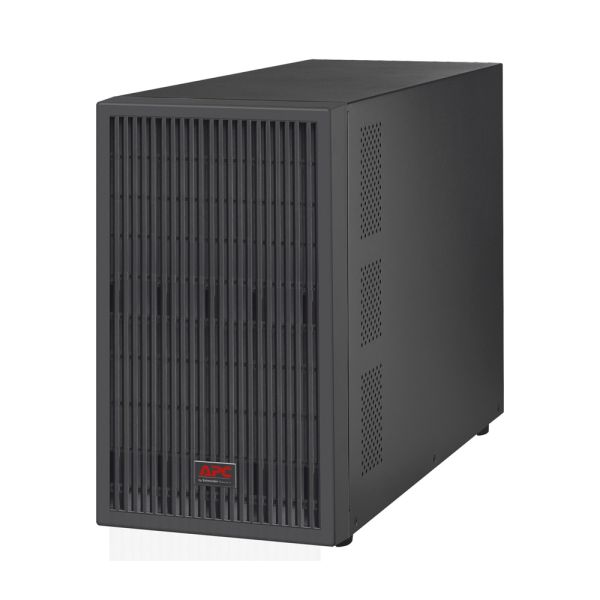

The external battery pack from APC by Schneider Electric connects to applicable Easy UPS On-Line SRV models to deliver flexible runtime.
The external battery pack from APC by Schneider Electric connects to applicable Easy UPS On-Line SRV models to deliver flexible runtime. The UPS and external battery pack safeguard electronic devices against utility power outages, brownouts, sags, and surges.
Includes: Battery cable, Documentation CD, User manual
Features & Benefits:
This battery pack is suitable for use with the following Easy UPS On-Line:
Output | |
|---|---|
| Battery Output Voltage | 72 V |
Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Battery mounting | Floor mounted |
| Expected Battery Life (years) | 3 – 5 |
| Battery blocks per string | 6 |
Physical | |
| Maximum Height | 336MM, 33.6CM |
| Maximum Width | 190MM, 19.0CM |
| Maximum Depth | 425MM, 42.5CM |
| Net Weight | 38.0KG |
| Shipping weight | 40.2KG |
| Shipping Height | 325MM, 32.5CM |
| Shipping Width | 235MM, 23.5CM |
| Shipping Depth | 565MM, 56.5CM |
| Color | Black |
Environmental | |
| Operating Temperature | 0 – 40 °C |
| Operating Relative Humidity | 0 – 95 (Non-condensing) % |
| Operating Elevation | 0 – 3000meters |
| Storage Temperature | -15 – 40 °C |
| Storage Relative Humidity | 0 – 95 (Non-condensing) % |
| Storage Elevation | 0 – 15000meters |
Conformance | |
| Approvals | CE, EAC, EN/IEC 62040-1 |
| Standard warranty | 2 years repair or replace |
Sustainable Offer Status | |
| RoHS | Compliant |
EASY UPS BATTERY SRV36/72/240BP-9A
Installation Sheet of APC branded External Battery Pack SRV36BP-9A, SRV72BP-9A and SRV240BP-9A for 230 V Tower with extended runtime 1-10 kVA models.
