Call us for availability and ETA on: 0800 254 5655
High-performance computer and electronics UPS for maximum power protection.
High-performance computer and electronics UPS for maximum power protection.
Includes - User manual
Protection |
|
|---|---|
| Battery and surge protected outlets | Back up and protect your devices and data in the event of a power failure, surge, or spike. |
| Dataline surge protection | It protects linked equipment from power spikes on data connections. |
| Surge only outlets |
Shield secondary devices from surges and spikes without lowering battery power utilised to power primary electronics during a power outage. |
Manageability |
|
| LCD Status Display | At a glance, it displays important UPS status information. Several status indicators, including load and battery bar graphs. |
| USB connection | Using a USB port on your PC, you can have access to extra power protection and administration functions for your UPS. |
| Audible alarms | Notifies you of changing utility power and UPS power circumstances. |
| Disconnected battery notification | When a battery is not accessible to supply backup power, a warning is issued. |
Safety |
|
| Safety-agency approved | Ensures that the product has been tested and approved to function safely with the connected service provider's equipment and within the specified environment. |
Marketing features |
|
| Battery-protected and surge-only outlets | Power capacity and run time are reserved for connected equipment that requires UPS battery backup, while surge protection is provided for less vital equipment. |
| Boost Automatic Voltage Regulation (AVR) | By rectifying low voltages without depleting the battery, it extends battery life and increases runtime. |
Serviceability |
|
| Resettable circuit breaker | Overloads are easily recovered; there is no need to replace a fuse. (Not available on Wall Tap SKUs) |
| Simple battery replacement | Increases UPS availability by enabling for quick and simple battery change. |
Availability |
|
| Automatic self-test | Periodic battery self-testing guarantees that a battery that needs to be changed is detected early. |
| Battery failure notification | Provides early-warning battery problem diagnosis, allowing for timely preventive maintenance. |
| Customizable voltage sensitivity | Toggle between preset voltage-transfer points based on power quality (high, medium, or low sensitivity), maximising useful battery life and protecting sensitive electronics. |
| Customizable voltage-transfer points | To maximise useful battery life and protect sensitive equipment, adjust the voltage points (widen or restrict the range) where your UPS transfers to battery. |
| Boost and Trim Automatic Voltage Regulation (AVR) | Improves application availability by rectifying low and high voltage circumstances without the use of a battery (not available on all models). |
| Cold-start capable | When the utility power is out, this device provides temporary battery power. |
| Green mode | In good power conditions, a patent-pending operating mode bypasses idle electrical components to achieve very high running efficiency without sacrificing any protection. |
| Intelligent battery management | Intelligent, precision charging improves battery performance, life, and reliability. |
| Transformer-block spaced outlets | Protect equipment with input transformer blocks that do not interfere with access to other receptacles. |
Output | |
|---|---|
| Battery Capacity (Ah) | 18 |
| Battery Output Voltage | 24V |
Input | |
| Number of Power Cords | 1 |
Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Battery mounting | Stand alone battery stack |
| Included Battery Modules | 2 |
| Expected Battery Life (years) | 4 - 6 |
| RBC Quantity | 1 |
Physical | |
| Maximum Height | 301mm, 30.1cm |
| Maximum Width | 112mm, 11.2cm |
| Maximum Depth | 382mm, 38.2cm |
| Net Weight | 13.4kg |
| Shipping weight | 14.6kg |
| Shipping Height | 400mm, 40.0cm |
| Shipping Width | 240mm, 24.0cm |
| Shipping Depth | 491mm, 49.1cm |
| Colour | Black |
Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0 - 3144meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 15240meters |
Conformance | |
| Approvals | TÜV |
| Standard warranty | 3 years repair or replace |
Sustainable Offer Status | |
| RoHS | Compliant |

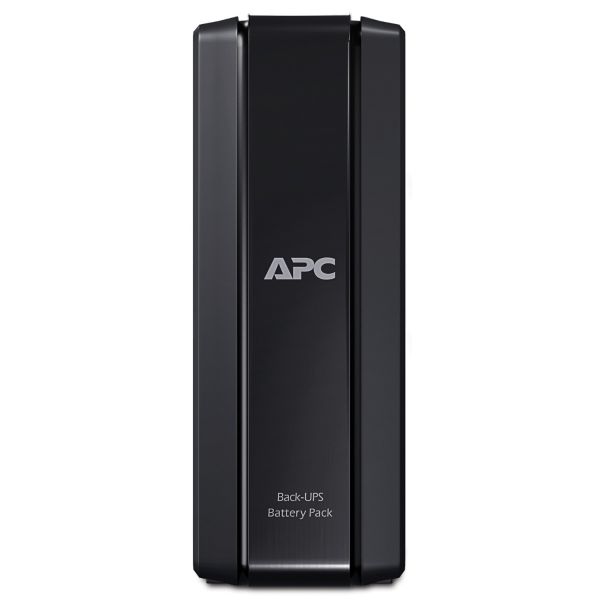

Back-UPS External Battery Pack BR24BPG
User Manual for the Back-UPS battery pack BR24BPG
Back-UPS Pro BR24BPG External Battery Pack Specification Sheet
Two page brochure with top level features, benefits and specs
APC Back-UPS Pro Brochure
BR-MI and BR-SI Models
Estimated delivery cost for APC Back-UPS Pro External Battery Pack for 1500VA Back-UPS Pro is £0.
