7 in stock for 1-2 Day Delivery
Surge protection and battery backup for home electronics, computers and smart technology.

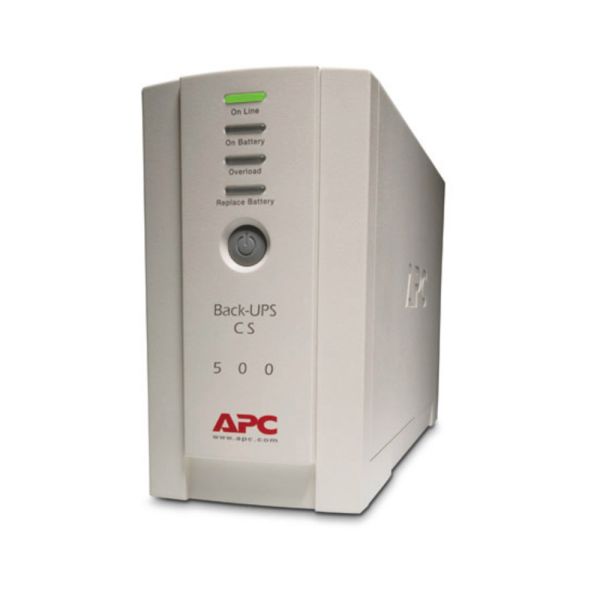

The APC Back-UPS is a surge protector and battery backup to protect computers and electronic equipment. The home and office backup solution provides autonomy of almost 4 minutes at 300 watts. This allows for a graceful shutdown in the event of a power failure or mains power outage. Additionally, the unit features four surge protectors.
The intuitive design features battery-protected and surge-only outlets. This feature allows suitable runtime for essential equipment that requires UPS battery backup while protecting less critical equipment against power sags and surges.
The APC Back-UPS has a handy LED status display and audible alarms to provide indicators of power conditions. In addition, a battery self-test ensures that the user is alerted well before a battery needs replacing. The manufacturer ensures maximum protection for electronic equipment by offering a two-year 'repair or replace' warranty.
Includes: (1) Detachable 1.2 m IEC power cord, (1) Detachable IEC power cord, CD with software, Documentation CD, Telephone cable, USB cable, Warranty card
Features & Benefits:
Output | |
|---|---|
| Max Configurable Power (Watts) | 300 Watts / 500VA |
| Output Frequency (sync to mains) | 47 - 63 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised |
| Topology | Standby |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical : 10 ms maximum |
Input | |
| Input frequency | 47 - 63 Hz, 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 160 - 300 Adjustable, 180 - 266V |
| Number of Power Cords | 2 |
Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 8hour(s) |
| Nominal Battery Voltage | 12V |
| Replacement Battery | RBC2 |
| Expected Battery Life (years) | 4 - 6 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 10 Watts |
| Battery Volt-Amp-Hour Capacity | 83 |
| Runtime | View Runtime Graph |
| Efficiency | View Efficiency Graph |
Communications & Management | |
| Interface Port(s) | Optional Simple Signalling RS232 cable, USB |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering | |
| Surge energy rating | 310Joules |
| Data Line Protection | RJ45 analog phone line for phone/fax/modem/DSL |
| Filtering | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical | |
| Maximum Height | 165mm, 16.5cm |
| Maximum Width | 91mm, 9.1cm |
| Maximum Depth | 284mm, 28.4cm |
| Net Weight | 6.32kg |
| Shipping weight | 7.05kg |
| Shipping Height | 178mm, 17.8cm |
| Shipping Width | 241mm, 24.1cm |
| Shipping Depth | 368mm, 36.8cm |
| Color | Beige |
Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 15240meters |
| Audible noise at 1 meter from surface of unit | 40.0dBA |
| Online thermal dissipation | 24.0BTU/hr |
Conformance | |
| Approvals | C-Tick, CE, EN 50091-1, EN 50091-2, GOST, VDE |
| Equipment protection policy | Lifetime : 100000 euros, Lifetime : 50000 GBP |
| Standard warranty | 2 years repair or replace |
Sustainable Offer Status | |
| RoHS | Compliant |
Back-UPS 350/500/650EI Series
Back-UPS CS BK350EI, BK500EI, BK650EI and BK650-AS User Manual
Smart-UPS Safety Guide - Smart-UPS & Back-UPS (Sheet)
Back-UPS BK350EI, BK500EI, BK650EI Specification Sheet
Two-page brochure with top-level features, benefits and specs.
