Surge protection and battery backup for home electronics, computers and smart technology.

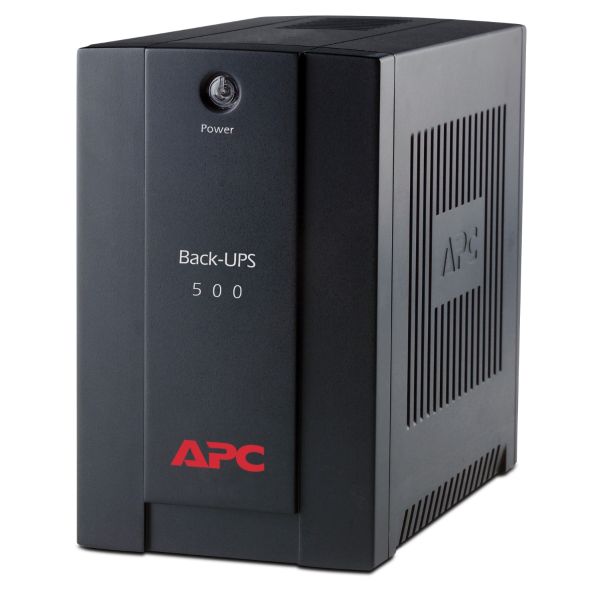

The APC Back-UPS is the ideal home and office backup solution providing autonomy of over two minutes at 270 watts. This allows for a graceful shutdown in the event of a sudden mains outage or power failure. Furthermore, the unit has adjustable voltage sensitivity, allowing you to configure the UPS for maximum performance in specific power situations. The intuitive design includes battery-protected and surge-only outlets. Power capacity and run-time are reserved for connected devices that require UPS battery backup, while surge protection is provided for less vital equipment.
To ensure smooth running, the APC Back-UPS has a handy LED status display and audible alarms to provide indicators of power conditions. In addition, battery self-test ensures early detection of a battery that needs to be replaced. The manufacturer ensures maximum protection for electronic equipment by offering a two-year warranty.
Features & Benefits:
Output | |
|---|---|
| Max Configurable Power (Watts) | 300 Watts / 500VA |
| Output Frequency (sync to mains) | 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised, 50 Hz Sync to mains |
| Topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical : 10 ms maximum |
Input | |
| Input frequency | 45 - 65 Hz |
| Input voltage range for main operations | 160 - 280V |
| Number of Power Cords | 1 |
Batteries & Runtime | |
| Nominal Battery Voltage | 12 V |
| Battery Charge Power (Watts) | 4.7kWatts |
| Runtime | View Runtime Graph |
| Efficiency | View Efficiency Graph |
Communications & Management | |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering | |
| Surge energy rating | 273Joules |
Physical | |
| Maximum Height | 185mm, 18.5cm |
| Maximum Width | 115mm, 11.5cm |
| Maximum Depth | 213mm, 21.3cm |
| Net Weight | 5.2kg |
| Shipping weight | 5.68kg |
| Shipping Height | 257mm, 25.7cm |
| Shipping Width | 190mm, 19.0cm |
| Shipping Depth | 291mm, 29.1cm |
| Colour | Black |
Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 15240meters |
| Audible noise at 1 meter from surface of unit | 45.0dBA |
Conformance | |
| Approvals | CE |
| Standard warranty | 2 years repair or replace |
Sustainable Offer Status | |
| RoHS | Compliant |
Back-UPS BX 500CI/650CI/650CI-FR/800CI/1100CI AR
Back-UPS BX500CI
User Manual
Back-UPS BX500CI
Two-page brochure with top-level features, benefits, and specifications.
