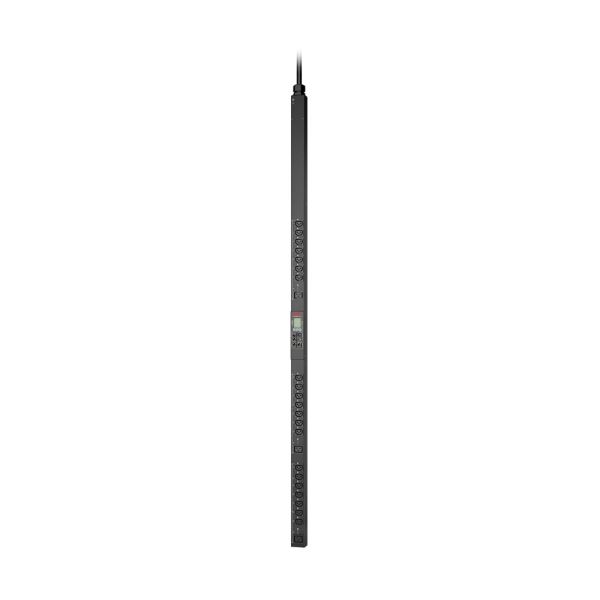

APC APDU9981EU3 Rack PDU 9000 Switched, Zero U, 11.0kW, 230V, (21) C13 & (3) C19

1 in stock for 1-2 Day Delivery

1 in stock for 1-2 Day Delivery

SKU:
APDU9981EU3
MPN:
APDU9981EU3
£1,444.26 £1,203.55

Switched Rack Power Distribution Units (PDUs) from APC allow for advanced, user-configured power regulation and active monitoring.

Free Express Delivery Over £99*  (1 - 2 Days)

Switched Rack Power Distribution Units (PDUs) from APC allow for advanced, user-configured power regulation and active monitoring. Remote outlet level controls permit power on/off capabilities for remote equipment rebooting and limit unlawful use of individual outlets. Power sequencing delays let users choose the order in which connected devices turn on or off.

Includes: Installation guide, Rack Mounting brackets, Safety guide

Features & Benefits:

  • Output Connections - (21) IEC 60320 C13, (3) IEC 60320 C19
  • Nominal Output Voltage - 230V
  • Nominal Input Voltage - 400V 3PH
  • Input Connections - IEC 60309 16 A 3P + N + PE
  • Cord Length - 1.8meters
  • Flash Upgradeable
  • Field-replaceable NMC
  • C13/C15 and C19/C21 Hybrid Outlets
  • Hydraulic Magnetic Circuit Breakers
  • High Retention Outlets
  • 60C Operating Temperature
  • Single input power source
  • Rack-Mountable
  • Wide range of input and output connections
  • Multi-tier user access
  • Network Port Sharing
  • Network Management Capabilities
  • EcoStruxure IT Ready
  • Alarm Thresholds
  • Gigabit Ethernet Connectivity
  • Enhanced Cybersecurity
  • Outlet Level Grouping
  • Alarm Thresholds
  • 1% Metering Accuracy

Output

Overload Protection No
Maximum Total Current Draw 16

Input

Input frequency 50/60 Hz
Number of Power Cords 1
Load Capacity 11000VA
Maximum Input Current 16A
Maximum Line Current 16A
Regulatory Derated Input Current (North America) 16A

Physical

Maximum Height 1792mm, 179.2cm
Maximum Width 55mm, 5.5cm
Maximum Depth 46mm, 4.6cm
Net Weight 7.0kg
Shipping weight 8.95kg
Shipping Height 2002mm, 200.2cm
Shipping Width 165mm, 16.5cm
Shipping Depth 114mm, 11.4cm
Colour Black
Units per Pallet 48.0

Environmental

Operating Temperature -5 - 60 °C
Operating Relative Humidity 5 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -25 - 65 °C
Storage Relative Humidity 5 - 95 %
Storage Elevation 0 - 15240meters

Conformance

Approvals cUL listed, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC part 15 class A, ICES-003, UL listed, VDE
Standard warranty 3 years repair or replace

Manuals and Warranties

NetShelter 9000 Series Switched Rack PDU User Guide
Firmware operating instructions

Release Notes NetShelter™ 9000 Series Rack Power Distribution

Rack Power Distribution Unit Display Module Installation
Includes safety information and an illustration showing how to replace the display module for a rack power distribution unit.
