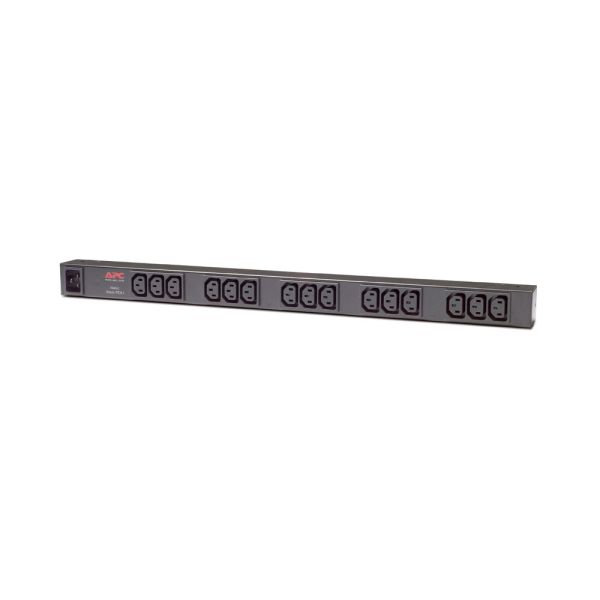

APC AP9572 Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13

1 in stock for 1-2 Day Delivery

1 in stock for 1-2 Day Delivery

SKU:
AP9572
MPN:
AP9572
£0.00 £0.00

Basic Rack Power Distribution Units (PDUs) from APC allow users to distribute power throughout a rack or enclosure.

Free Express Delivery Over £99*  (1 - 2 Days)

Basic Rack Power Distribution Units (PDUs) from APC allow users to distribute power throughout a rack or enclosure. It doesn't matter if the rack or enclosure is in a big data centre or a tiny branch office, the equipment needs to be powered. The PDUs from APC come with a variety of amperage and voltage options, as well as power strips that may be positioned vertically or horizontally.

Includes: Rack Mounting brackets, Toolless mounting kit, User manual

Features & Benefits:

  • Output Connections - (15) IEC 60320 C13
  • Nominal Output Voltage - 200V, 208V, 230V
  • Nominal Input Voltage - 200V, 208V, 230V
  • Input Connections - IEC 60320 C20
  • Cord Length - 2.5meters
  • Toolless Rack Mounting Capabilities
  • Vertical Mounting Capabilities

Output

Maximum Total Current Draw 16

Input

Input frequency 50/60 Hz
Number of Power Cords 1
Load Capacity 3680VA
Maximum Input Current 16A
Maximum Line Current 16A

Physical

Maximum Height 620mm, 62.0cm
Maximum Width 44mm, 4.4cm
Maximum Depth 44mm, 4.4cm
Net Weight 2.0kg
Shipping weight 2.73kg
Shipping Height 638mm, 63.8cm
Shipping Width 168mm, 16.8cm
Shipping Depth 146mm, 14.6cm
Colour Black

Environmental

Operating Temperature 0 - 45 °C
Operating Relative Humidity 5 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -25 - 65 °C
Storage Relative Humidity 5 - 95 %
Storage Elevation 0 - 15240meters

Conformance

Approvals CE, cUL listed, Queensland Australia, UL 60950, UL listed, VDE
Standard warranty 2 years repair or replace

Sustainable Offer Status

RoHS Compliant

Manuals and Warranties

Basic Rack PDU Installation (Manual)
Installation

Catalogues

Rack Power Distribution Unit (PDU) Pocket Guide
Brochure including Basic, Metered, Switched, and Metered by Outlet Rack PDUs product features and specifications

Design/Configuration

Basic Rack PDU (AP9572) - Overview and Specifications
Includes an illustration with a description of product features as well as electrical, physical, environmental, and compliance specifications.
