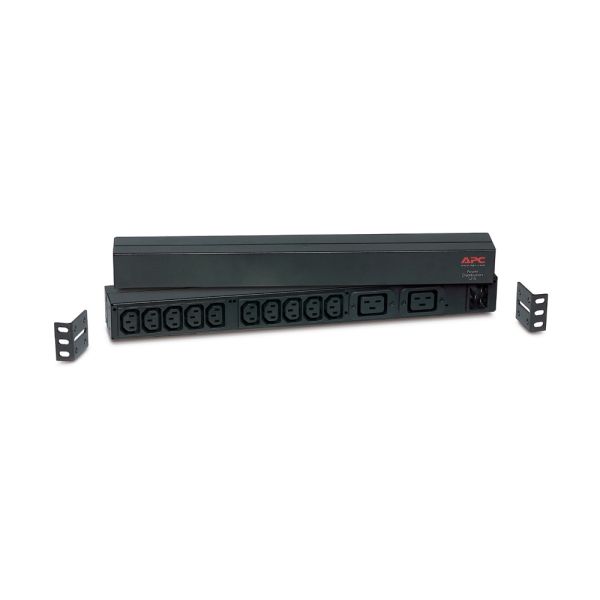

APC AP9559 Rack PDU, Basic, 1U, 16A, 208/230V, (10) C13 & (2) C19

6 in stock for 1-2 Day Delivery

6 in stock for 1-2 Day Delivery

SKU:
AP9559
MPN:
AP9559
£318.67 £265.56

Basic Rack Power Distribution Units (PDUs) from APC allow users to distribute power throughout a rack or enclosure.

Free Express Delivery Over £99*  (1 - 2 Days)

Basic Rack Power Distribution Units (PDUs) from APC allow users to distribute power throughout a rack or enclosure. It doesn't matter if the rack or enclosure is in a big data centre or a tiny branch office, the equipment needs to be powered. The PDUs from APC come with a variety of amperage and voltage options, as well as power strips that may be positioned vertically or horizontally.

Includes: Rack Mounting brackets, User manual

Features & Benefits:

  • Rack Height - 1U
  • Output Connections - (10) IEC 60320 C13, (2) IEC 60320 C19
  • Nominal Output Voltage - 120V, 208V, 230V
  • Nominal Input Voltage - 120V, 208V, 230V
  • Input Connections - IEC 60320 C20
  • Cord Length - 2.5meters

Output

Overload Protection No
Maximum Total Current Draw 16

Input

Input frequency 50/60 Hz
Acceptable Input Voltage 90 - 250VAC
Number of Power Cords 1
Load Capacity 3680VA
Maximum Input Current 16A
Maximum Line Current 16A

Physical

Maximum Height 44mm, 4.4cm
Maximum Width 447mm, 44.7cm
Maximum Depth 57mm, 5.7cm
Net Weight 0.98kg
Shipping weight 2.36kg
Shipping Height 165mm, 16.5cm
Shipping Width 483mm, 48.3cm
Shipping Depth 152mm, 15.2cm
Colour Black

Environmental

Operating Temperature 0 - 45 °C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -25 - 65 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0 - 15240meters

Conformance

Approvals CE, cUL listed, UL listed, VDE, Victoria
Standard warranty 2 years repair or replace

Sustainable Offer Status

RoHS Compliant

Manuals and Warranties

Basic Rack PDU AP9559,AP9565, AP9566, AP9570 Installation Manual
Installation, Operation, Specifications

Catalogues

Rack Power Distribution Unit (PDU) Pocket Guide
Brochure including Basic, Metered, Switched, and Metered by Outlet Rack PDUs product features and specifications
