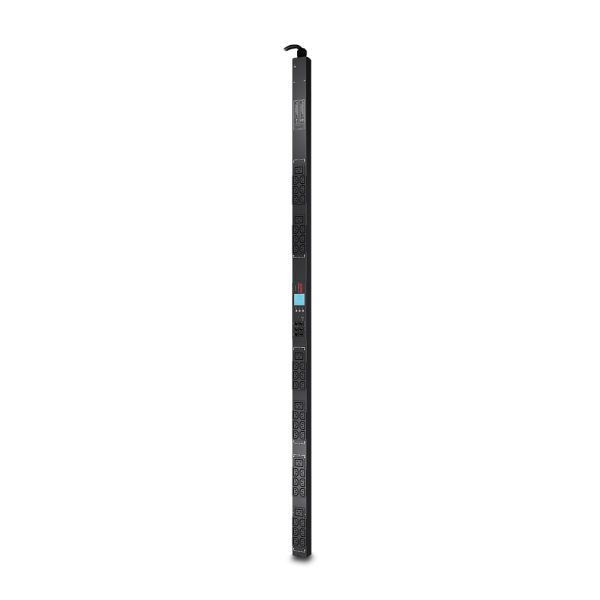

APC AP8881 Rack PDU 2G, Metered, Zero U, 11kW, 230V, (36) C13 & (6) C19

6 in stock for 1-2 Day Delivery

6 in stock for 1-2 Day Delivery

SKU:
AP8881
MPN:
AP8881
£1,063.51 £886.26

Metered Rack Power Distribution Units (PDUs) from APC have active metering that lets you save energy and protect circuits.

Free Express Delivery Over £99*  (1 - 2 Days)

Metered Rack Power Distribution Units (PDUs) from APC have active metering that lets you save energy and protect circuits. User-defined alarm thresholds reduce risk by sending local and remote alerts in real-time if a circuit is about to get too full. Data Center Managers have information about how much power is being used, so they can balance the load and make sure IT environments are the right size to lower the total cost of ownership.

Metered Rack PDUs have real power monitoring, a temperature and humidity sensor port, locking IEC receptacles, and ultra low-profile circuit breakers. Users can access and set up Metered Rack PDUs through secure Web, SNMP, or Telnet interfaces, which are backed up by APC Centralized Management platforms like InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable

Features & Benefits:

  • Output Connections - (36) IEC 60320 C13, (6) IEC 60320 C19
  • Nominal Output Voltage - 230V
  • Nominal Input Voltage - 400V 3PH
  • Input Connections - IEC 60309 16 A 3P + N + PE, IEC 60309 20 A 3P + N + PE
  • Cord Length - 1.8meters

Output

Overload Protection No
Maximum Total Current Draw 16

Input

Input frequency 50/60 Hz
Number of Power Cords 1
Load Capacity 11000VA
Maximum Input Current 16A
Maximum Line Current 16A
Regulatory Derated Input Current (North America) 16A

Physical

Maximum Height 1791mm, 179.1cm
Maximum Width 56mm, 5.6cm
Maximum Depth 44mm, 4.4cm
Net Weight 6.38kg
Shipping weight 8.02kg
Shipping Height 2000mm, 200.0cm
Shipping Width 162mm, 16.2cm
Shipping Depth 107mm, 10.7cm
Colour Black
Units per Pallet 48.0

Environmental

Operating Temperature -5 - 60 °C
Operating Relative Humidity 5 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -25 - 65 °C
Storage Relative Humidity 5 - 95 %
Storage Elevation 0 - 15240meters

Conformance

Approvals CSA C22.2 No 60950, IEC 60950, UL 60950-1, VDE
Standard warranty 2 years repair or replace

Sustainable Offer Status

RoHS Compliant

Manuals and Warranties

Rack Power Distribution Unit (PDU) Installation Instructions
Includes multi-language installation instructions and DHCP network information for MPO (managed per outlet AP86xx) Rack Power Distribution Units

Metered Rack Power Distribution Unit User Guide Firmware v6.8.0

Release Notes Rack PDU with NMC R2
Release Notes for NetShelter Rack PDUs. AOS v704, rpdu2g v706,

Security Handbook Network Enabled Devices AOS v7.X
Security Configuration

Rack Power Distribution Unit Display Module Installation
Includes safety information and an illustration showing how to replace the display module for a rack power distribution unit.

Rack Power Distribution Unit (PDU) Safety Information
Provides the safety information for installation and operation of the Rack PDU.

MIB Reference Guide (Online Guide)

Release Notes Metered and Switched (AP8xxx) Rack Power Distribution Unit (PDU) v6.4.0
Release Notes for AP88XX Metered Rack PDUs and AP89xx/AP86xx Switched Rack PDUs for Application Module v6.4.0, APC OS (AOS) v6.4.0, and the APC PowerNet MIB v415

Metered Rack Power Distribution Unit (AP88XX) User Guide Firmware Version 5.X.X

Release Notes: Rack Power Distribution Unit with Network Management Card 2
Release Notes for: AP7xxxB and AP8xxx series Rack PDUs and AP71xxBInline Current Meters

Security Handbook for APC Network Management Cards AOS v5.x.x
Security, Configuration

Catalogues

Rack Power Distribution Unit (PDU) Pocket Guide
Brochure including Basic, Metered, Switched, and Metered by Outlet Rack PDUs product features and specifications

APC Modular Power Distribution, Modular Power Accessories, and Rack PDUs: 208 and 415V Compatibility Chart
Chart that specifies the APC Modular Power Distribution Units that support the installation of APC 208V & 415V Power Distribution Modules and specifies compatible APC Rack PDUs for each PDM.

APC Modular Power Distribution, Modular Power Accessories, and Rack PDUs: 400V Compatibility Chart
Chart that specifies the APC Modular Power Distribution Units that support the installation of APC 400V Power Distribution Modules and specifies compatible APC Rack PDUs for each PDM.

Design/Configuration

Metered Rack PDU AP8881 Overview and Specifications
Includes an illustration with a description of product features as well as electrical, physical, environmental, and compliance specifications.

Metered Rack PDU AP8881 Overview and Specifications
Includes an illustration with a description of product features as well as electrical, physical, environmental, and compliance specifications.
