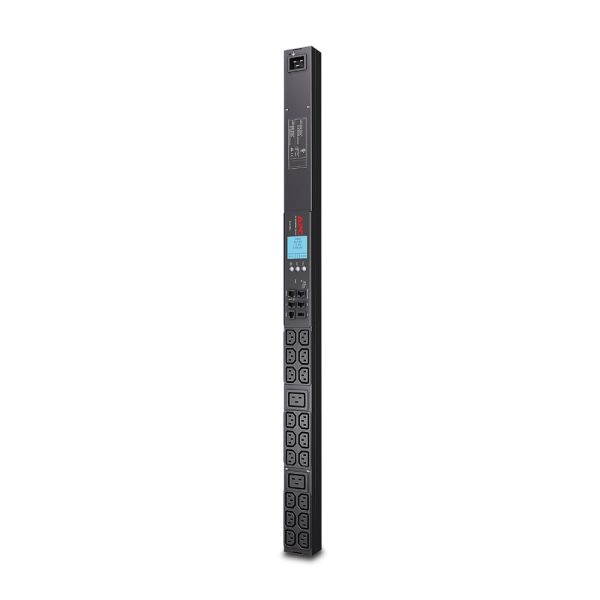

Metered Rack Power Distribution Units (PDUs) from APC have active metering that lets you save energy and protect circuits.
Metered Rack Power Distribution Units (PDUs) from APC have active metering that lets you save energy and protect circuits. User-defined alarm thresholds reduce risk by sending local and remote alerts in real-time if a circuit is about to get too full. Data Center Managers have information about how much power is being used, so they can balance the load and make sure IT environments are the right size to lower the total cost of ownership.
Metered Rack PDUs have real power monitoring, a temperature and humidity sensor port, locking IEC receptacles, and ultra low-profile circuit breakers. Users can access and set up Metered Rack PDUs through secure Web, SNMP, or Telnet interfaces, which are backed up by APC Centralized Management platforms like InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes: Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
Features & Benefits:
Output |
|
|---|---|
| Overload Protection | No |
| Maximum Total Current Draw | 16 |
Input |
|
| Input frequency | 50/60 Hz |
| Acceptable Input Voltage | 100 - 240VAC |
| Load Capacity | 3300VA |
| Maximum Input Current | 20A |
| Regulatory Derated Input Current (North America) | 16A |
Physical |
|
| Maximum Height | 902mm, 90.2cm |
| Maximum Width | 56mm, 5.6cm |
| Maximum Depth | 44mm, 4.4cm |
| Net Weight | 2.93kg |
| Shipping weight | 4.2kg |
| Shipping Height | 1124mm, 112.4cm |
| Shipping Width | 162mm, 16.2cm |
| Shipping Depth | 107mm, 10.7cm |
| Colour | Black |
Environmental |
|
| Operating Temperature | -5 - 60 °C |
| Operating Relative Humidity | 5 - 95 % |
| Operating Elevation | 0 - 3048meters |
| Storage Temperature | -25 - 65 °C |
| Storage Relative Humidity | 5 - 95 % |
| Storage Elevation | 0 - 15240meters |
Conformance |
|
| Approvals | CSA C22.2 No 60950, IEC 60950, METI Denan, UL 60950-1, VDE |
| Standard warranty | 2 years repair or replace |
Sustainable Offer Status |
|
| RoHS | Compliant |
Rack Power Distribution Unit (PDU) Installation Instructions
Includes multi-language installation instructions and DHCP network information for MPO (managed per outlet AP86xx) Rack Power Distribution Units
Metered Rack Power Distribution Unit User Guide Firmware v6.8.0
Release Notes Rack PDU with NMC R2
Release Notes for NetShelter Rack PDUs. AOS v704, rpdu2g v706,
Security Handbook Network Enabled Devices AOS v7.X
Security Configuration
Rack Power Distribution Unit Display Module Installation
Includes safety information and an illustration showing how to replace the display module for a rack power distribution unit.
Rack Power Distribution Unit (PDU) Safety Information
Provides the safety information for installation and operation of the Rack PDU.
MIB Reference Guide (Online Guide)
Release Notes Metered and Switched (AP8xxx) Rack Power Distribution Unit (PDU) v6.4.0
Release Notes for AP88XX Metered Rack PDUs and AP89xx/AP86xx Switched Rack PDUs for Application Module v6.4.0, APC OS (AOS) v6.4.0, and the APC PowerNet MIB v415
Metered Rack Power Distribution Unit (AP88XX) User Guide Firmware Version 5.X.X
Release Notes: Rack Power Distribution Unit with Network Management Card 2
Release Notes for: AP7xxxB and AP8xxx series Rack PDUs and AP71xxBInline Current Meters
Security Handbook for APC Network Management Cards AOS v5.x.x
Security, Configuration
Rack Power Distribution Unit (PDU) Pocket Guide
Brochure including Basic, Metered, Switched, and Metered by Outlet Rack PDUs product features and specifications
Metered Rack PDU AP8858 Overview and Specifications
Includes an illustration with a description of product features as well as electrical, physical, environmental, and compliance specifications.
