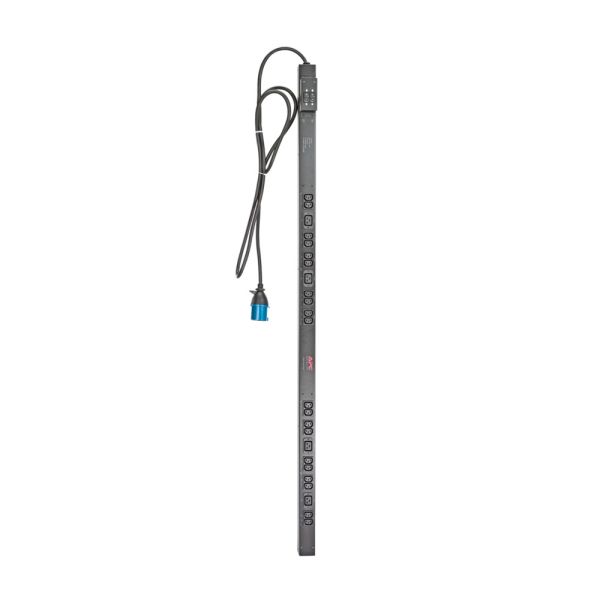

APC AP7553 Rack PDU, Basic, Zero U, 32A, 230V, (20) C13 & (4) C19

1-2 Day Delivery

1-2 Day Delivery

SKU:
AP7553
MPN:
AP7553
£349.78 £291.48

Basic Rack Power Distribution Units (PDUs) from APC allow users to distribute power outlets to rack-mounted devices.

Free Express Delivery Over £99*  (1 - 2 Days)

Basic Rack Power Distribution Units (PDUs) from APC allow users to distribute power outlets to rack-mounted devices. As well as horizontal and vertical units, a range of power inputs and outputs are provided to accommodate the majority of power conditions. Basic Rack PDUs are InfraStruXure-Certified and installed vertically and tool-free in the rear channel of a NetShelter VX.

Includes: Installation guide, Rack mounting brackets, Toolless mounting kit

Features & Benefits:

  • Output Connections - (20) IEC 60320 C13, (4) IEC 60320 C19
  • Nominal Output Voltage - 230V
  • Nominal Input Voltage - 200V, 208V, 230V
  • Input Connections - IEC 60309 32 A 2P + E
  • Resettable circuit breakers
  • Toolless Rack Mounting Capabilities
  • Vertical Mounting Capabilities

Output

Maximum Total Current Draw 32

Input

Input frequency 47 - 63 Hz
Number of Power Cords 1
Load Capacity 7400VA
Maximum Input Current 32A

Physical

Maximum Height 1619mm, 161.9cm
Maximum Width 56mm, 5.6cm
Maximum Depth 44mm, 4.4cm
Net Weight 5.57kg
Shipping weight 6.48kg
Shipping Height 2121mm, 212.1cm
Shipping Width 152mm, 15.2cm
Shipping Depth 127mm, 12.7cm
Colour Black

Environmental

Operating Temperature 0 - 45 °C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -25 - 65 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0 - 15240meters

Conformance

Approvals CE, VDE
Standard warranty 2 years repair or replace

Sustainable Offer Status

RoHS Compliant

Basic Rack PDU Installation and Quick-Start (Manual)
Installation

Power Distribution Units : Deep Toolless Mounting Kit (Sheet)
Installation

Rack PDU Accessories Circuit Breaker Operation (Sheet)

Rack Power Distribution Unit (PDU) Pocket Guide
Brochure including Basic, Metered, Switched, and Metered by Outlet Rack PDUs product features and specifications.

APC Modular Power Distribution, Modular Power Accessories, and Rack PDUs: 400V Compatibility Chart
Chart that specifies the APC Modular Power Distribution Units that support the installation of APC 400V Power Distribution Modules and specifies compatible APC Rack PDUs for each PDM.
